Description

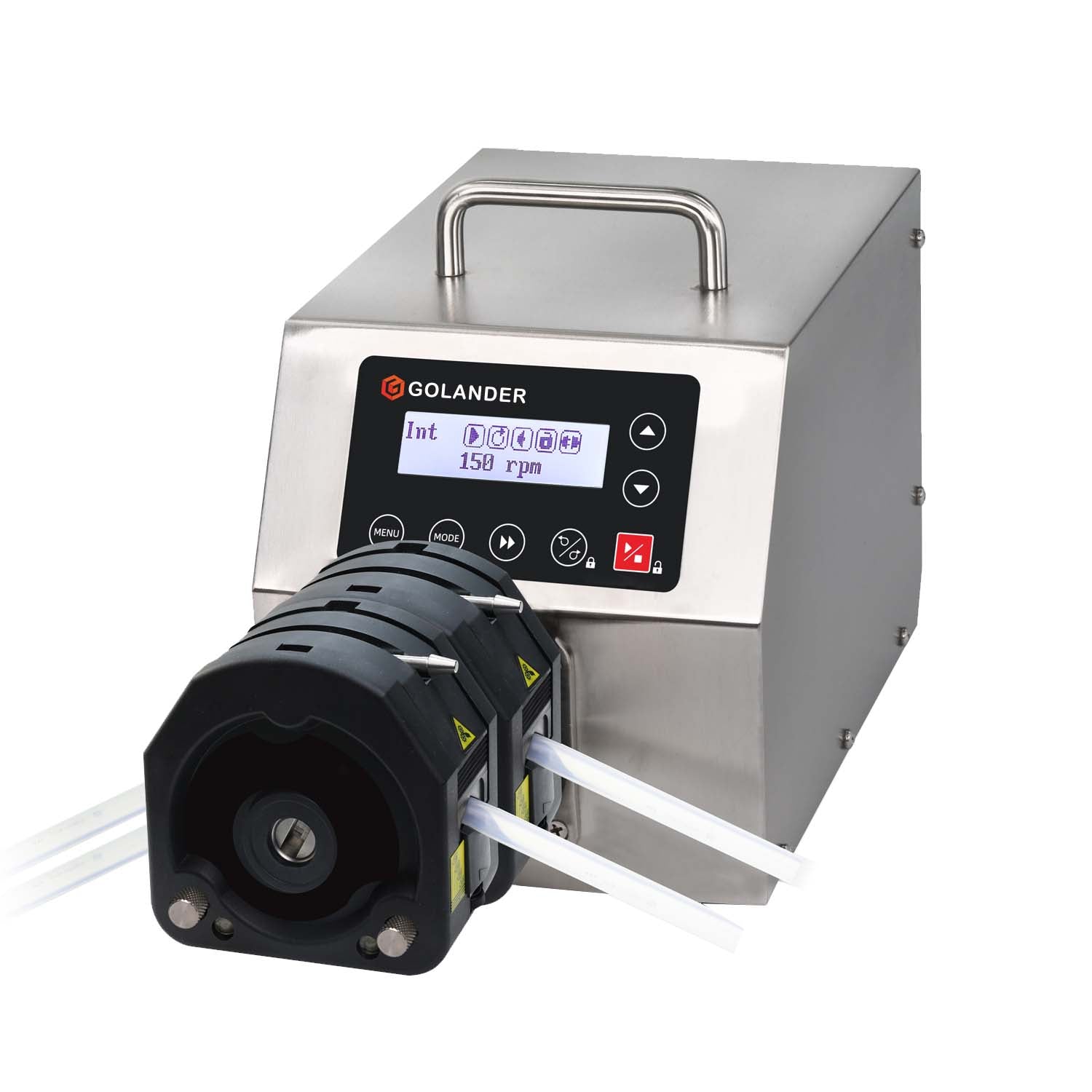

WT300S pump can work with up to 4 pump heads because of the high torque DC brushless motor drive and it's maintenance free. It has basic functions such as reversible direction, start/stop, full speed (for fast cleaning) and adjustable speed. The start/stop, reversible direction, speed adjustment functions can be controlled by external control signal, besides it also has time dispensing function. With RS485 MODBUS communication interface, the pump is easy to communicate with external device, such as PC, HMI or PLC.
Functions and Features
- LCD displays rotating speed and working mode.
- High torque brushless servo motor drive, precise speed, wide range, stable operation, can achieve high precision flow transmission.
- high torque output, can be installed with multiple KZ25 pump heads, KZ25-L pump heads and GN10 pump heads.
- Start/stop, reversible direction, full speed, adjust speed, state memory (power-down-memory).
- Parameters setting such as running time, interval time, and number of cycles to meet the needs of timing, liquid packaging, flow testing, etc..
- Speed deceleration and back suction functions, which can effectively prevent liquid dripping when the machine stops.
- Key lock function to prevent misoperation.
- The pump can be remotely operated through the Lead Fluid APP software, such as start-stop, speed regulation, timing operation, etc., and has monitoring functions such as shutdown alarm and tube replacement reminder (optional).
- The pump house is made of stainless steel 304 material, which effectively prevents the corrosion of various organic solvents and is easy to clean.
- Internal double-deck isolation structure, provide special protection for the circuit system makes it dust-proof and moisture-proof.
- Super anti-interference feature, wide input voltage range, acceptable for the complex power environment .
- RS485 communication interface, MODBUS protocol is available, easy to connect other equipments.
- Accept various external signal control to start and stop, forward and reverse and speed adjustment, optical coupler isolation.
- Supports the output of working status signals such as start-stop, forward-reverse, and current speed.
- It can be equipped with an external thermal printer (optional) to print the running parameters in real time.
- Supports accessories such as foot switch, pulse damper, leak detector, etc.
Specifications
- Flow range: 0.004~3850mL/min.
- Speed range: 0.1~350rpm.
- Speed resolution: 0.1rpm (speed≤100rpm),1rpm (speed>100rpm).
- Speed accuracy: <0.5%.
- Power supply: AC 90-240V, 50Hz/60Hz.
- Power consumption: <150W.
- External control: External control analog 0-5V, 0-10V, 4-20mA External control start and stop; External control input level 5V, 12V, 24V.
- Communication interface: RS485 communication interface, MODBUS protocol is available.
- Working environment: Temperature 0-40°C, relative humidity<80%
- IP grade: IP31.
- Dimension (LxWxH): 318mmx185mmx230mm.
- Drive weight: 5.9kg.
WT300S Suitable Pump Heads and Tubing, Flow Parameters
Drive type | Pump head | Channel | Tubing size | Flow rate per channel (mL/min) |
WT300S |
YZ15 | 1 | 13# 14# 16# 19# 25# 17# | 0.005-1495 |
YZ25 | 1 | 15# 24# | 0.17-990 | |
2xYZ15 | 2 | 13# 14# 16# 19# 25# 17# 18# | 0.005~1495 | |
2xYZ25 | 2 | 15# 24# | 0.17~990 | |
4xYZ15 | 4 | 13# 14# 16# 19# 25# 17# 18# | 0.005~1495 | |
4xYZ25 | 4 | 15# 24# | 0.17~990 | |
YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 0.006~1300 | |
YT25 | 1 | 15# 24# 35# 36# | 0.024~1750 | |
2xYT15 | 2 | 13# 14# 16# 19# 25# 17# 18# | 0.006~1300 | |
2xYT25 | 2 | 15# 24# 35# 36# | 0.024~1750 | |
4xYT15 | 4 | 13# 14# 16# 19# 25# 17# 18# | 0.006~1300 | |
4xYT25 | 4 | 15# 24# 35# 36# | 0.024~1750 | |
DT15-24 | 2 | 16# 19# 25# 17# | 0.067~1307 | |
DT15-44 | 4 | 16# 19# 25# 17# | 0.067~1307 | |
KZ25 | 1 | 15# 24# 35# 36# | 0.31~3850 | |
2xKZ25 | 2 | 15# 24# 35# 36# | 0.31~3850 | |
GN10 |
1 | 2mm ID, 4mm ID, 1mm wall thickness PTFE Tubing |
0.004-65ml/min |
