Description
The pump is suitable for transferring large amount of fluid in industry. It provides flow range from 0.4 to 13 L/min. The brush-less motor drive with large torque is maintenance free. It has basic functions such as reversible direction, start/stop, full speed (fast cleaning) and variable speed. With RS485 MODBUS interface, the pump is easy to be controlled by external device, such as computer, human machine interface or PLC.
Functions and Features
- Stainless steel housing.
- keypad controls running speed, reversible direction, start/stop, full speed, easy operation.
- Four digits LED indicator displays working speed.
- Brushless motor drive, maintenance free.
- Stainless steel housing, easy to clean, excellent resistance to corrosion of the acid,alkali, sodium and organic solvents.
- The circuit board with conformal coating makes it dust-proof and moisture-proof.
- External on/off voltage signal controls start/stop, reversible direction and easy dispensing function, optically coupled isolator. External analog signal adjusts the rotating speed.
- With RS485 MODBUS interface, easy to be controlled by external devices.
Specifications
- Flow range: 0.4-13 L/min
- Speed range: 30-600 rpm
- Speed resolution: 1 rpm.
- Flow accuracy: 3%
- Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz
- Power consumption: < 300W
- External control: Input level 5V, 12V (standard), 24V (optional)
- Communication interface: RS485 MODBUS interface
- Operating condition: Temperature 0~40°C; Relative humidity < 80%
- IP grade: IP31
- Dimensions (L x W x H): 340 x 235 x 175 mm (13.4 x 9.3 x 6.9 inch)
- Weight: 13 kg (28.7 lbs)
WG600S Applicable Pump Heads and Tubing, Flow Parameters
| Drive type | Pump head | Channel | Tubing size (mm) | Flow rate (L/min) per channel |
| WG600S (304SS) |

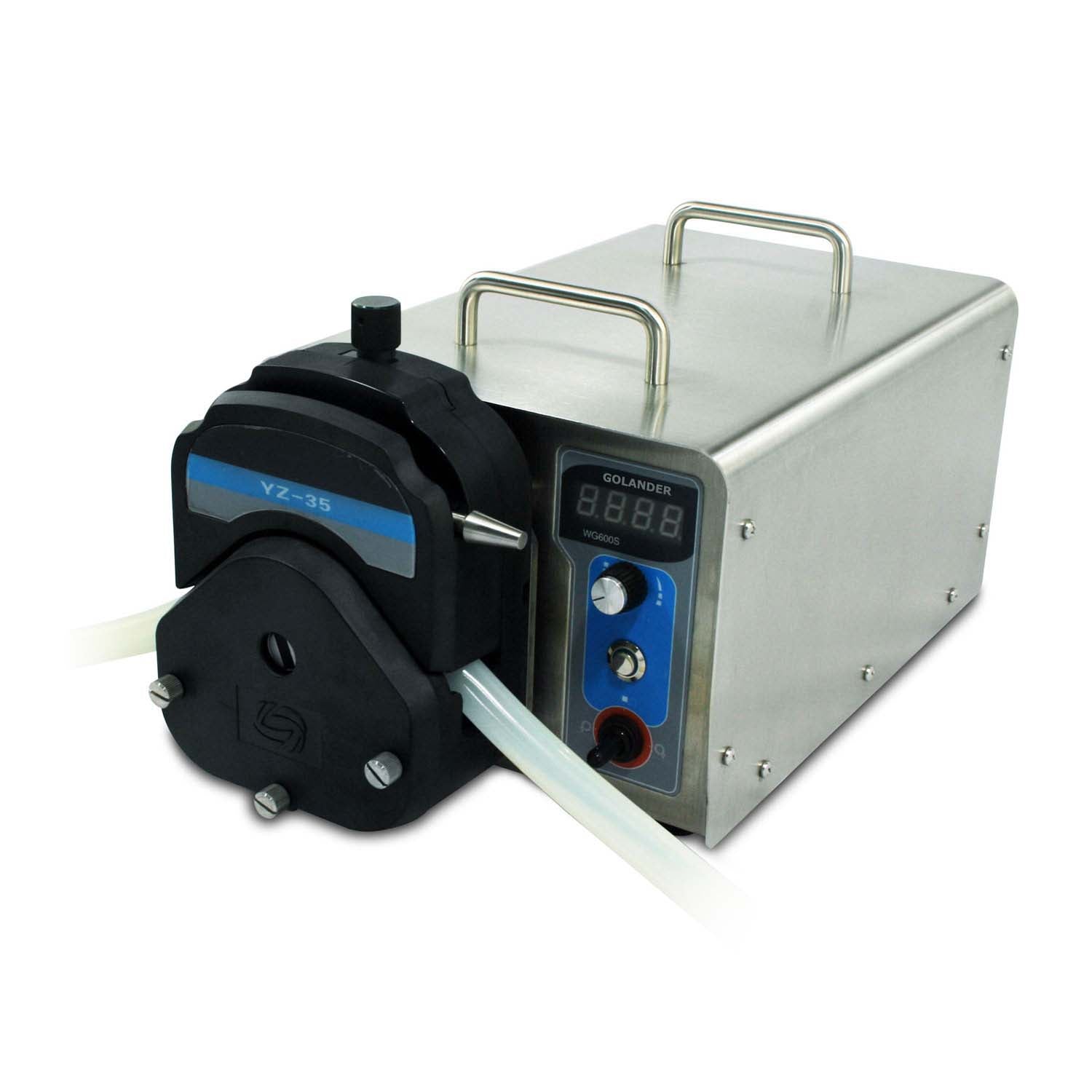

YZ35 | 1 | 73# 82# | 0.4~13 |

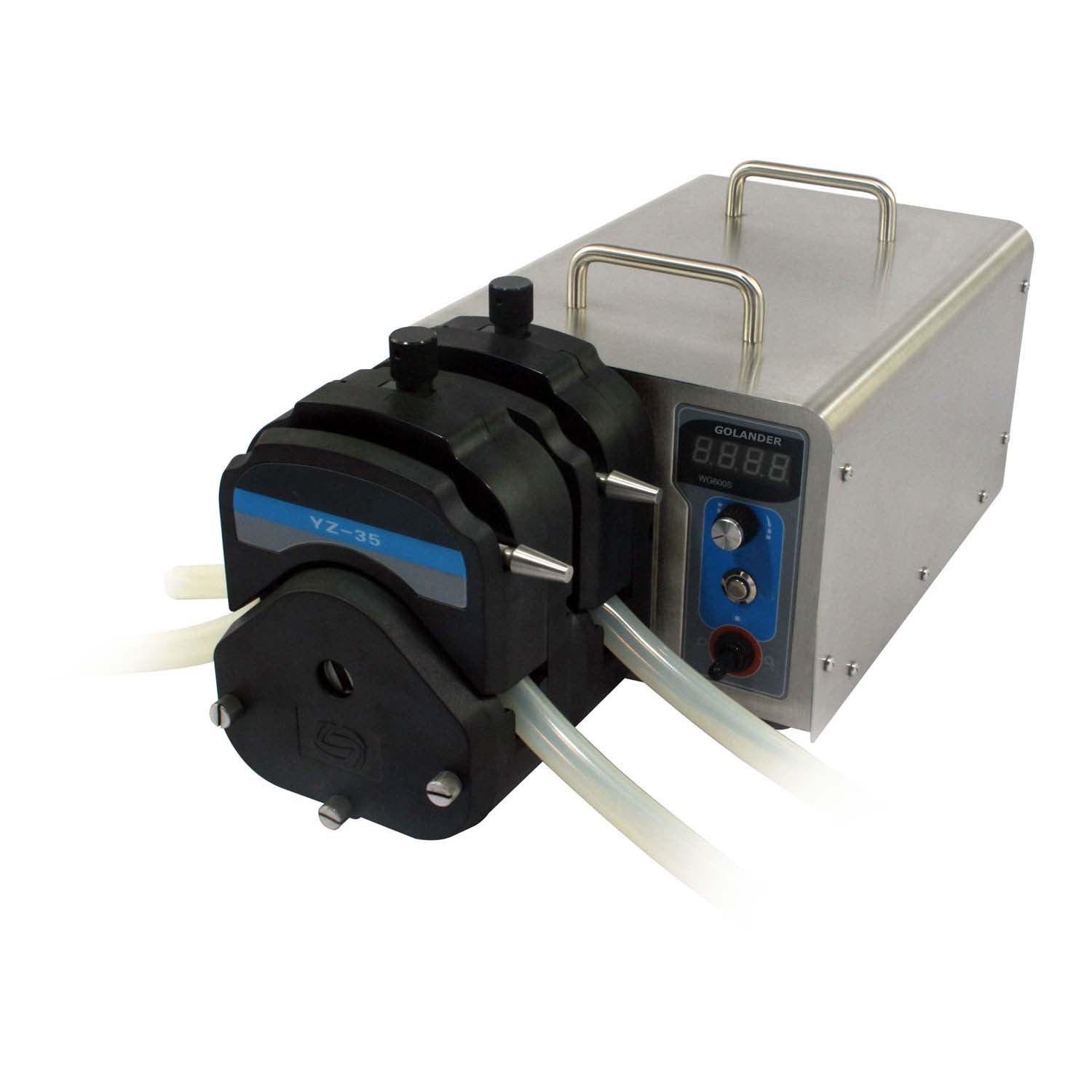

| 2 x YZ35 | 2 | 73# 82# | 0.4~13 |
