A pulse damper is a type of pressure vessel utilized to mitigate liquid pressure or flow pulsations within a pipeline. Its primary function is to stabilize fluid pressure and flow, minimize pipeline vibrations, and safeguard downstream instruments and equipment.
Specifically designed for peristaltic pumps, the pulse damper is optimized for their unique characteristics. If you intend to use it in conjunction with different pumps or under other circumstances, please consult the damper's performance parameters for guidance.

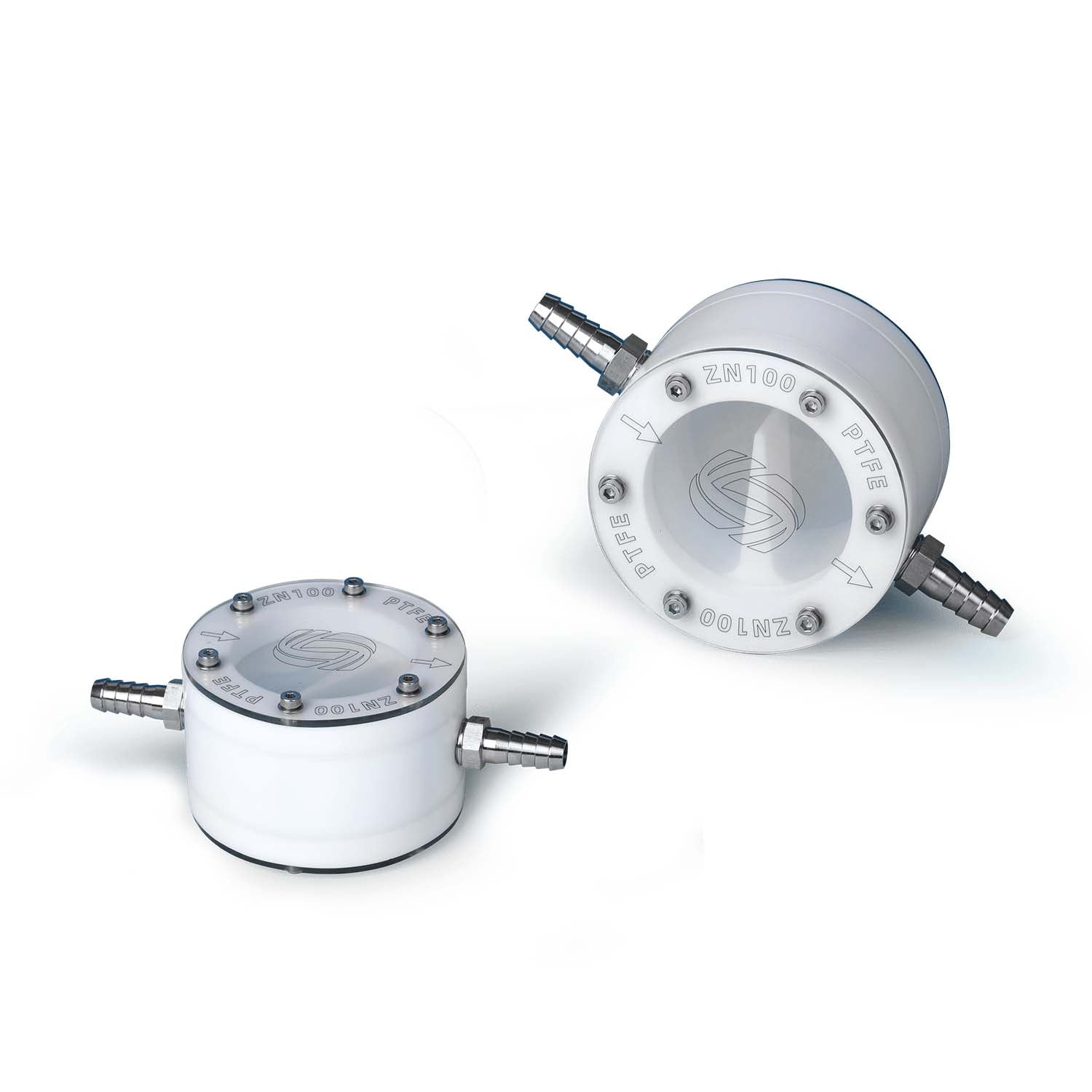

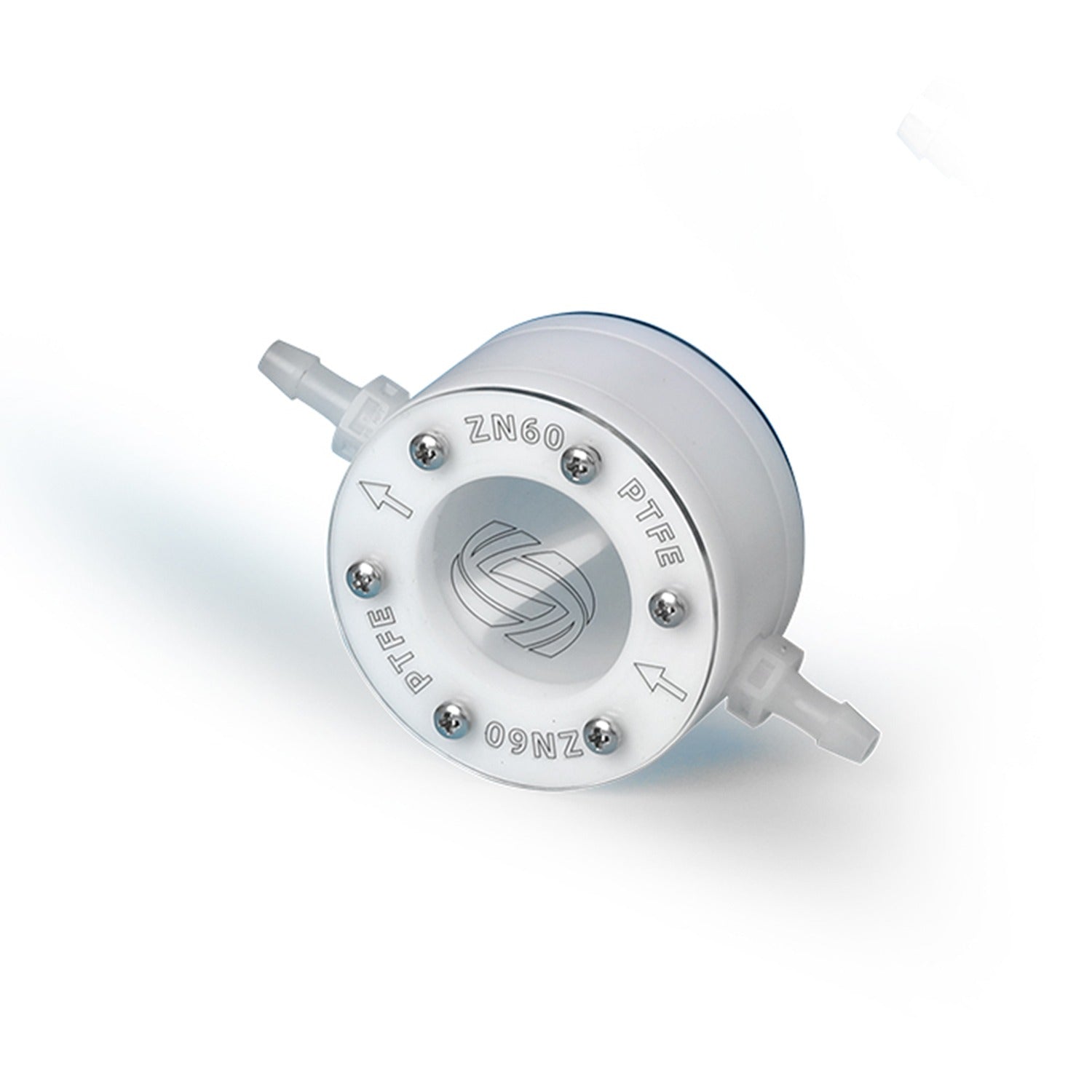

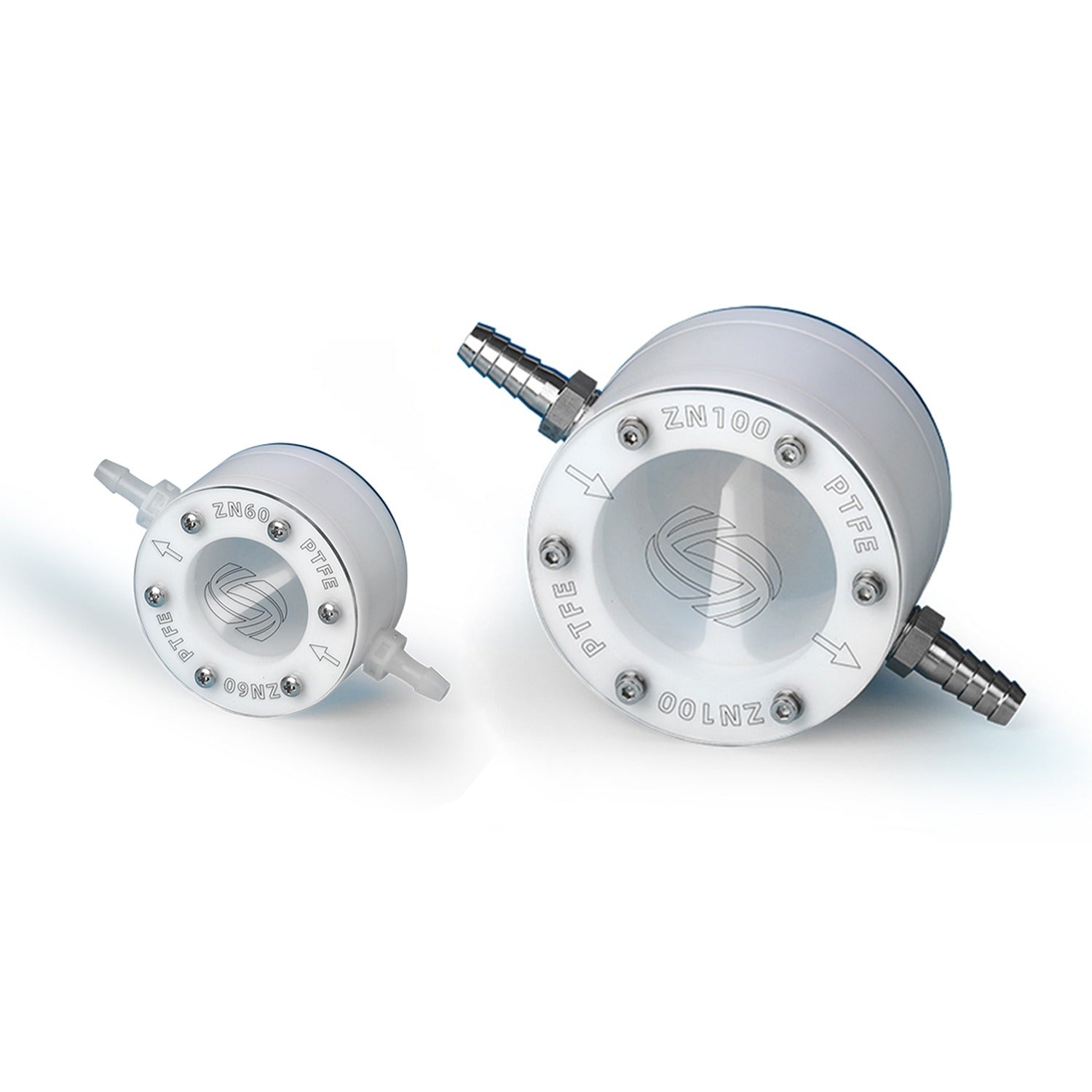

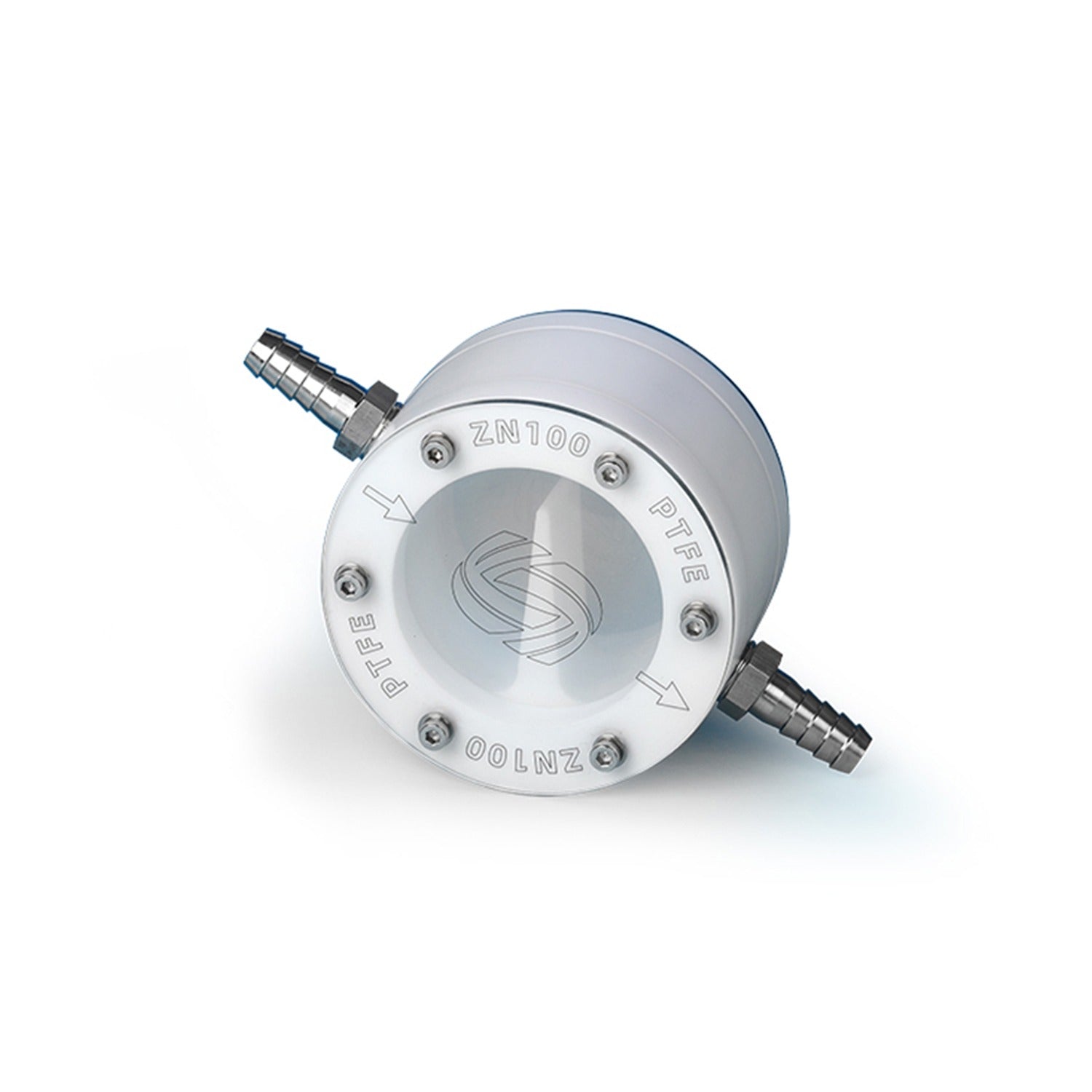

Our pulse dampers are with a reliable source of materials and guaranteed characteristics. These dampers have a body constructed from PTFE (polytetrafluoroethylene). Customers have the flexibility to select the appropriate damper type and connections based on their specific chemical requirements for the conveyed liquid. The internal volume of the ZN60 pulse damper is approximately 11ml, and it can withstand a maximum pressure of 0.18mpa at room temperature; the internal volume of the ZN100 pulse damper is approximately 92ml, and it can withstand a maximum pressure of 0.25mpa at room temperature.
| Model | Pulsating frequency | Internal Volume | Max Pressure | Flow rate |
| ZN60 | 0~2000 Hz | 11 mL | 0.18 mpa | 0～1200 mL/min |
| ZN100 | 0~2000 Hz | 92mL | 0.25 mpa | 500～8000 mL/min |
