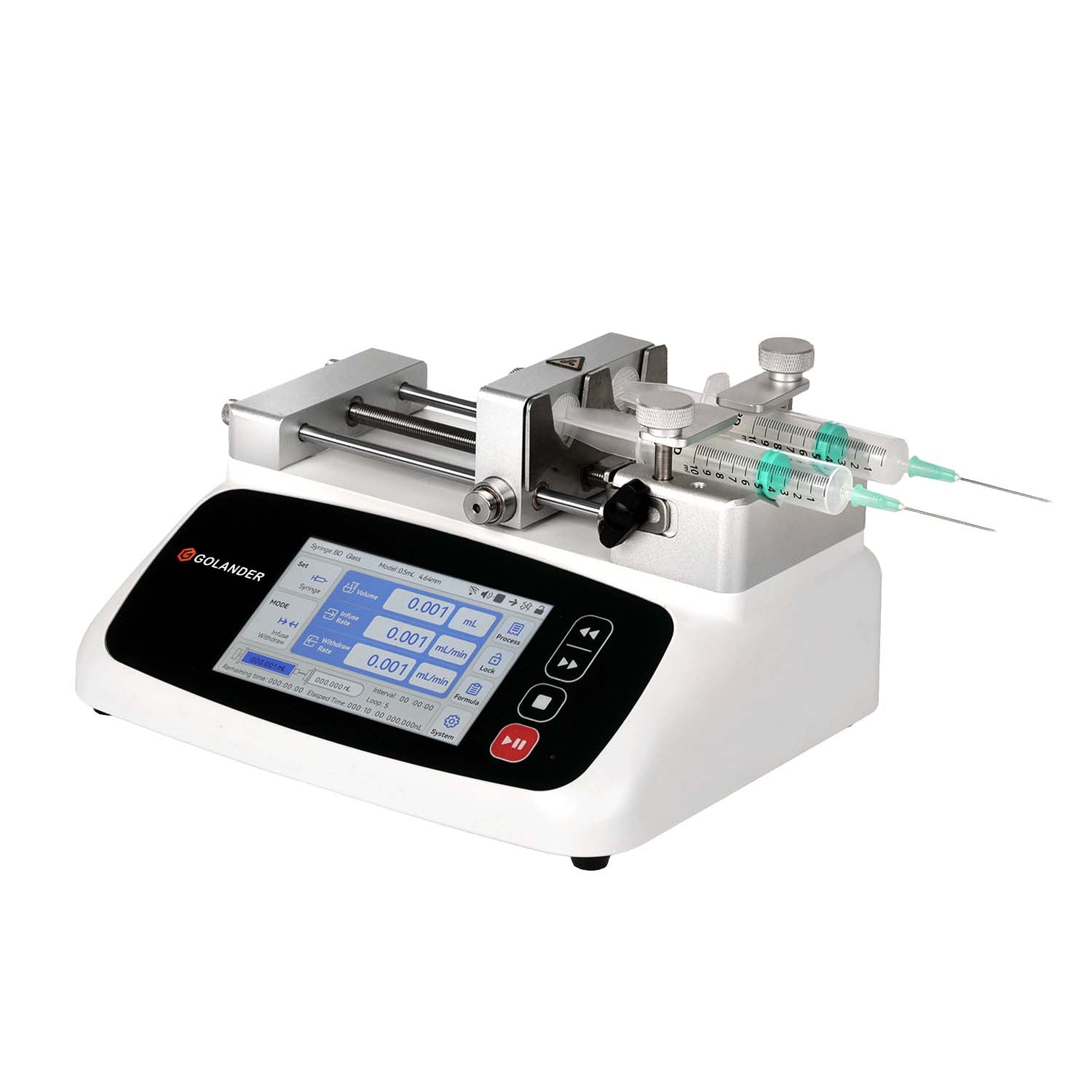

LAA-02 V3 Laboratory Dual-Syringe Pump

LAA-02 V3 Laboratory Dual-Syringe Pump

SKU:LAA-02-V3

Regular price $2,000.00
Regular price Sale price $2,000.00
Sale Sold out
Number of syringes: 2
Syringe size: 10µL-60mL
Flow rate: 0.2nL-86.3mL/min
View full details

Function and Features

  • Holds 2 plastic or glass syringes from 10 μL to 60 mL
  • Multiple working modes available
  • Color LCD touch screen for easy operation
  • Keypad with indicators for clear working status
  • Screen lock and muted-key operation available
  • Built-in selection of syringes from major manufacturers and models
  • Syringe protection and blockage alarm
  • Built-in RS485 communication, support MODBUS protocol
  • External signal to control start/stop and direction
  • Wide range of power input
  • Full metal housing


    Specifications

    • Syringe size: 10µl-60ml
    • Number of channels: 2
    • Flow range: 0.184nL/min to 83.318mL/min
    • Operation modes: infuse only, withdraw only, infuse/withdraw, withdraw/infuse, and continuous
    • Stroke resolution: 0.156μm/μstep
    • Pusher travel rate: 1μm/min to 150mm/min
    • Accuracy: ±<0.35% (when stroke > 30% of large stroke)
    • Linear force: 16kgf
    • Display: 4.3-inch LCD touch screen with operating keypad
    • Power-off memory: stores the running parameters automatically
    • Output:  RS-485, USB, and 15-pin D-sub connector
    • Power: AC100-240V, 50/60Hz
    • Operating temperature: 5-40℃
    • Relative humidity: <80%
    • Dimensions: 245x195x140mm
    • Weight: 3.2kg

    Reference Flow Rate

    Syringe size Syringe ID(mm) Min flow rate (nL/min) Max flow rate(mL/min)
    10μL 0.485 0.184 0.027
    25μL 0.729 0.417 0.626
    50μL 1.03 0.833 0.125
    100μL 1.457 1.667 0.250
    250μL 2.304 4.169 0.625
    500μL 3.256 8.326 1.248
    1mL 4.699 17.342 2.601
    5mL 11.989 112.890 16.933
    10mL 14.427 163.169 24.754
    20mL 19.05 285.027 42.754
    30mL 21.59 366.090 54.913
    60mL 26.594 555.459 83.318

    Please click here to download the operating manual.
