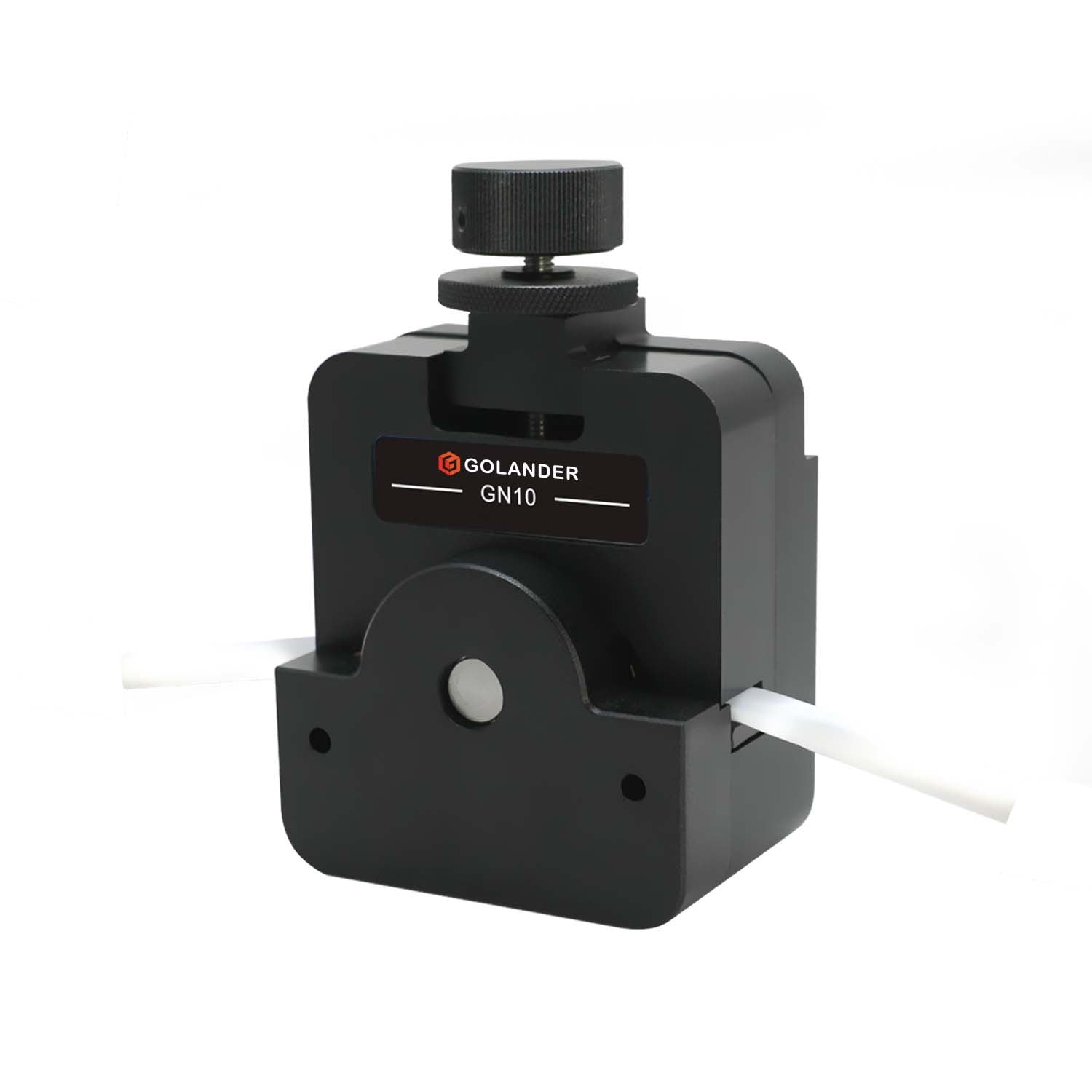

The GN10 pump head is designed for high-pressure applications and is compatible with PTFE tubing, offering excellent resistance to chemicals, including strong acids, and a wide range of organic solvents. This makes it ideal for transferring liquids that conventional peristaltic pumps cannot handle, especially in small-flow scenarios.
Key features:
- Materials: Made from durable aluminum alloy and POM for superior mechanical properties.
- Pressure Performance: Adjustable tube clearance with a locking structure, supporting a maximum outlet pressure of 0.68 Mpa.
- Ease of Use: Quick and simple tube installation, compact design, and reduced operational noise.
With its corrosion-resistant construction and high adaptability, the GN10 pump head is both efficient and reliable, combining strength with a sleek, functional appearance.
Flow Parameter
| Speed(rpm) | Tubing (IDxOD mm) | 300rpm is for Intermittent operation only | |
| 2x4 | 4x6 | ||
| 0.1 | 0.004 | 0.021 | |
| 10 | 0.4 | 2.1 | |
| 50 | 2 | 10.5 | |
| 100 | 4 | 21 | |
| 200 | 8 | 42 | |
| 300 | 12 | 65 | |
★ This data is for reference only.
Specification
| Speed Range |
0-300rpm
|
| Max Flow |
65mL/min
|
|
Tube
|
2.48×0.76mm / 4.48×0.76mm（PTFE)
|
|
Channel
|
1
|
|
Roller
|
6
|
|
Pressure tube structure
|
Adjustable pressure tube clearance
|
|
Transmission pressure
|
≤0.68MPa
|
|
Suction stroke
|
Not higher than 2 meters
|
|
Temperature
|
Temperature 0-40℃, humidity<80%
|
|
Dimension
|
83×140×65mm
|
|
Weight
|
0.92kg
|
Dimensions (mm)
Tube Life Comparison Table
|
Tube
|
Life (100RPM)
|
|
PTFE
|
500 hours
|
The above data were obtained from tests conducted by our laboratory under standard temperature and pressure conditions using pure water. These results are for reference only, as actual service life may vary depending on factors such as pressure, temperature, characteristics of the medium, tube batch, and wall thickness.
For specific inquiries, please contact us for technical support.
