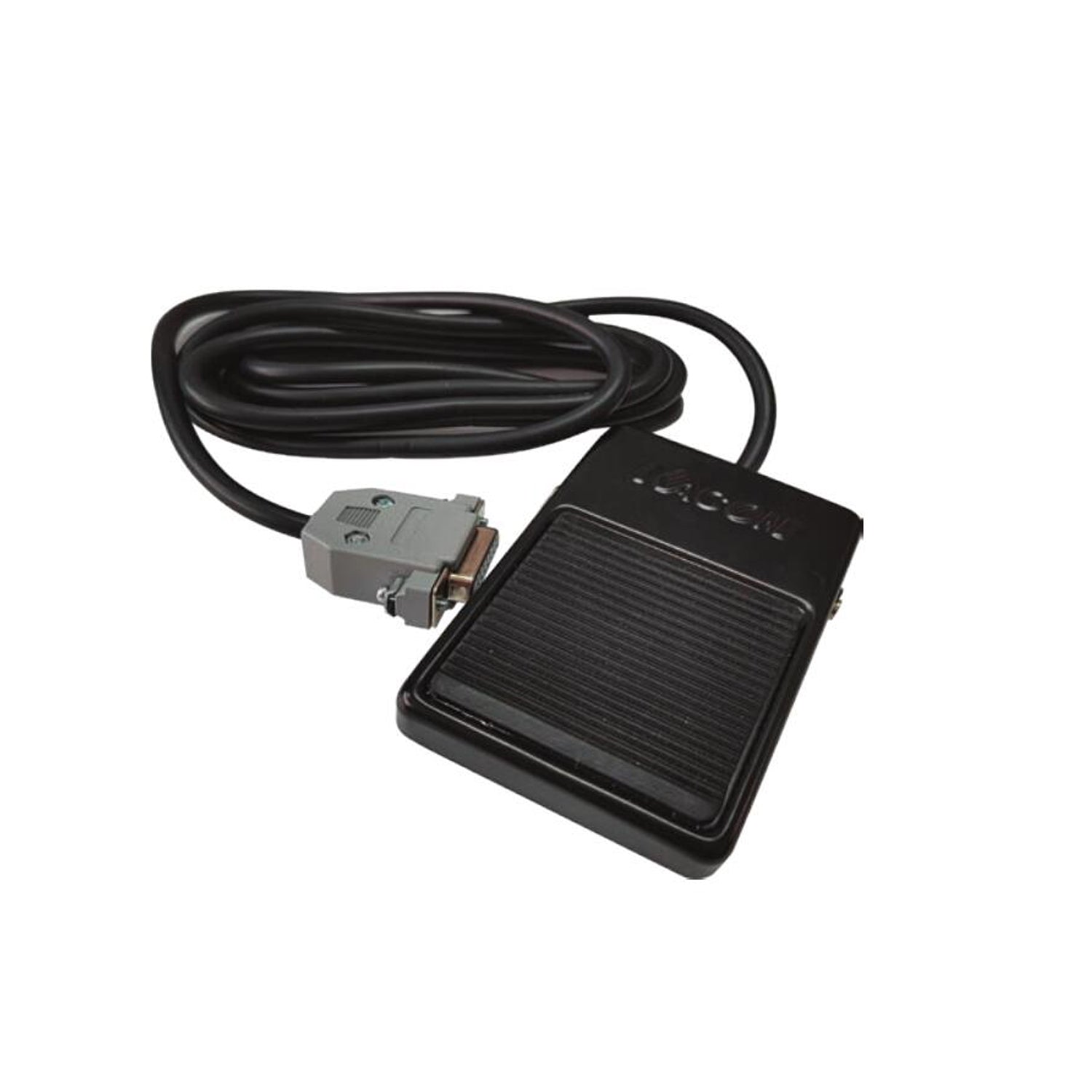

Functions and Features
- Clear tactile feedback and anti-fatigue features;
- Carbon steel plate with a corrosion-resistant powder coating, wear-resistant;
- Momentary switch;
- Work with pumps to control pump start and stop.
Specifications
Material: Powder coated stainless steel.
External control plug: DB15
Cable length: 1 meter (3ft).
Contact resistance: 50mΩ or less (first time)
Insulation resistance: 100mΩ1or more 500VDC test
Medium withstand voltage: 2000VAC（1minute）
Service life: mechanical: ≥100 million times, electrical: ≥100,000 times
Working environment: temperature-25 ～ +70℃, humidity≤85%
IP grade: IP54
Dimensions: 103x72x25mm
