Filter with Tubing Fitting

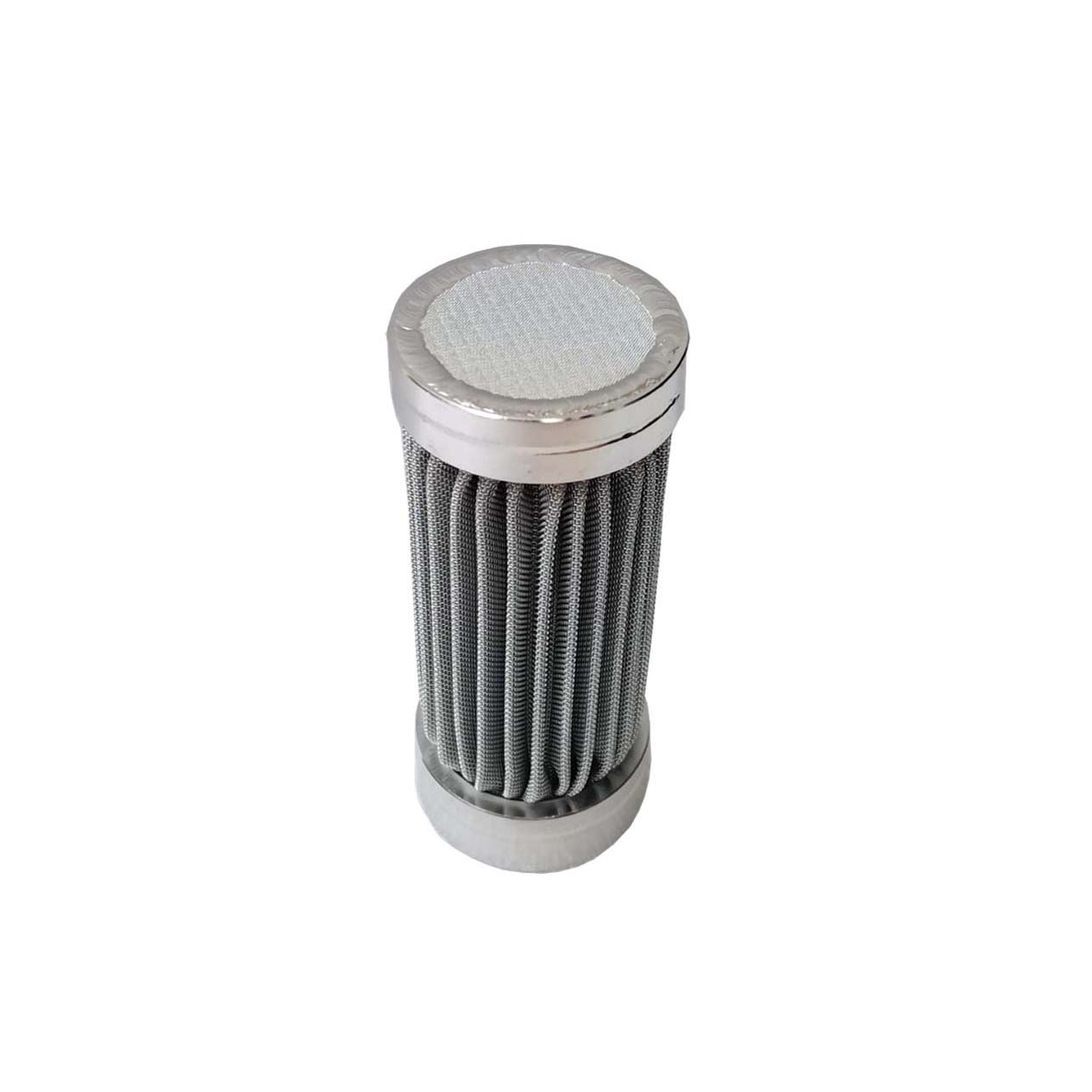

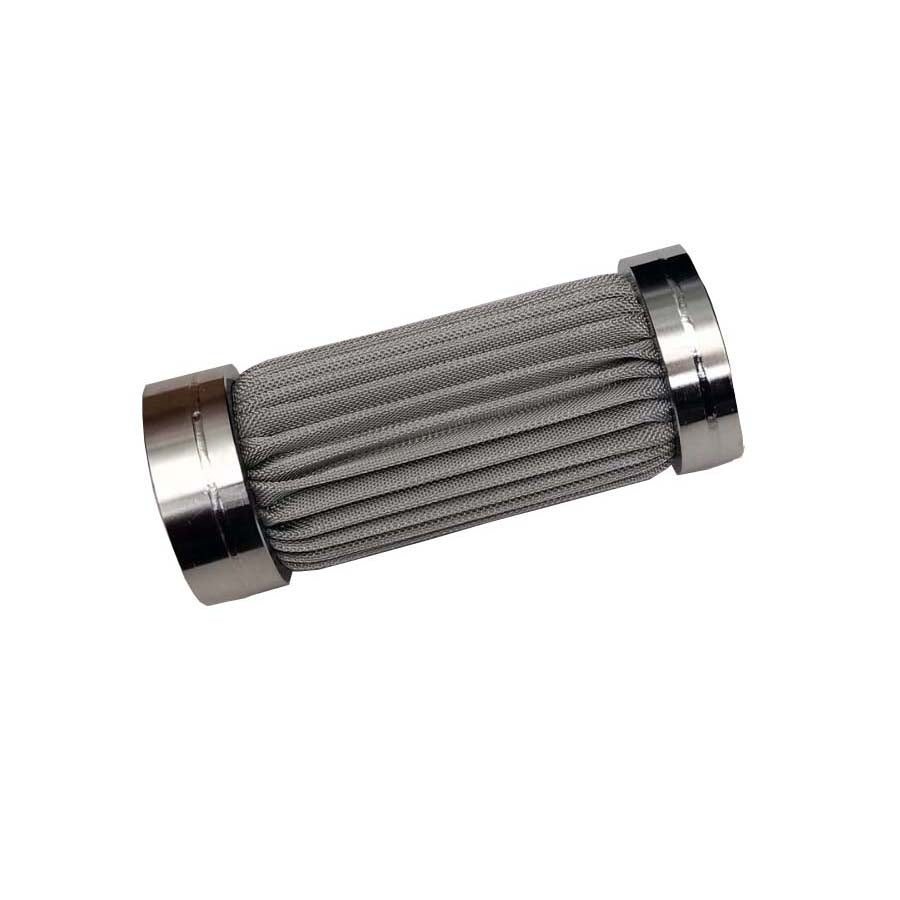

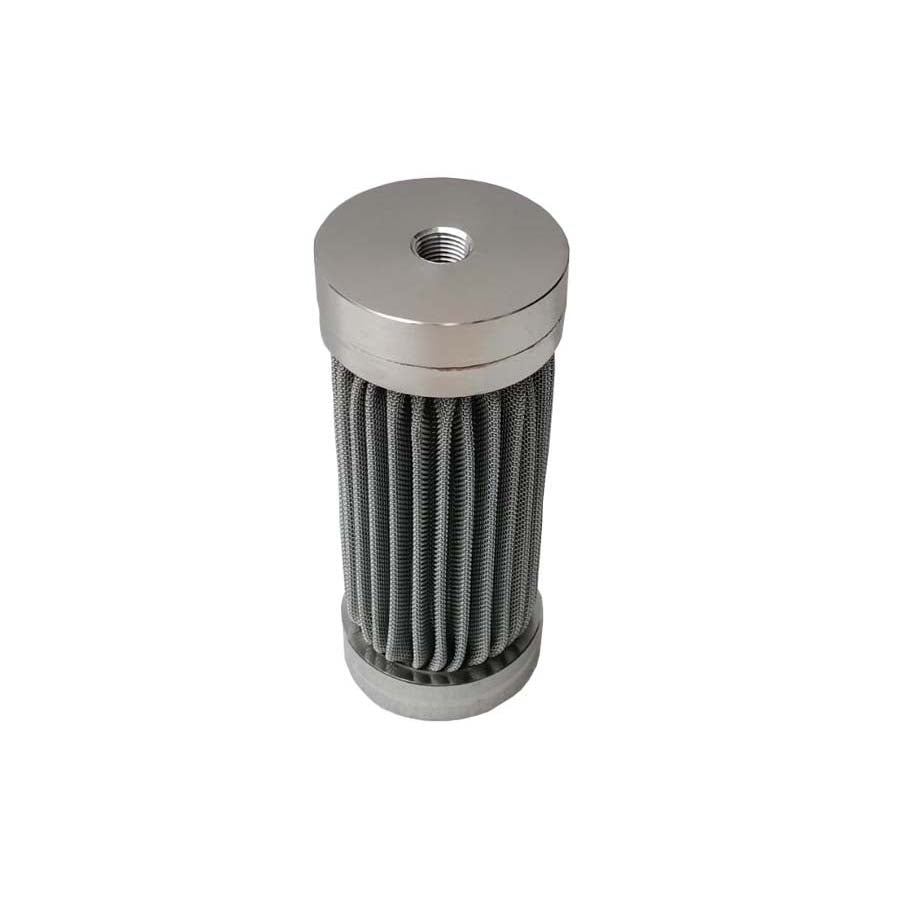

This is a filter to prevent particles larger than 10um entering the gear pump head to extend the lifetime of the gears.

Maximum flow rate: 3000ml/min
Material: Stainless Steel 316L
Dimensions: 44x106 mm

One fitting is included for specific tubing:
Material: Stainless Steel 316L
Thread: 1/8NPT

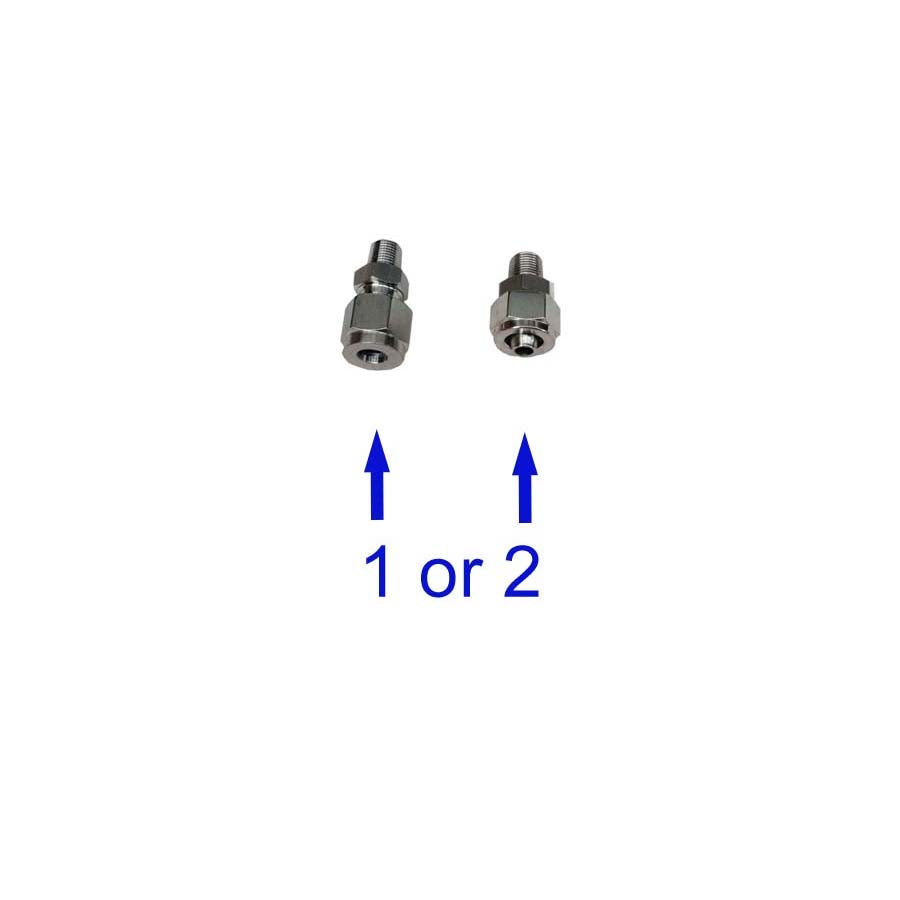

Fitting 1 shown in the picture is a compression fitting adapter for PTFE hard tubing, ID6xOD8mm, ID8*OD10mm, or ID10xOD12mm;
Fitting 2 shown in the picture is a quick connector for soft tubing, OD6, OD8 or OD10
