Function and Feature
- Adopts the Pneumatic Type Explosion-proof motor , safe and reliable.
- With the start/stop control.
- Large torque design ,can be installed a variety of pump heads.
- The table structure ,convenient operation.
- Stepless seed regulation, by adjusting the air pressure or flow valve control.
- High IP65 protection grade, suitable for complex working environment.
- Suitable for liquid transfer without accuracy requirement.
Technical Parameters
- Flow rate: Max 12L/min
- Speed range:140-600rpm(On load, speed fluctuation is bigger than motor driven)
- Adjust speed: Stepless speed regulation ,by adjust the air pressure or flow valve control.
- Control function: Start/stop(standard)，reversing function (optional)
- Air supply pressure: 0.1-0.7MPa
- Air consumption: ≥0.3m³/min
- Working environment: Temperature -10℃-60℃，relative humidity <80%
- IP grade: IP65
- Casing dimensions(LxWxH): 309*316*237mm
- Weight :11Kg

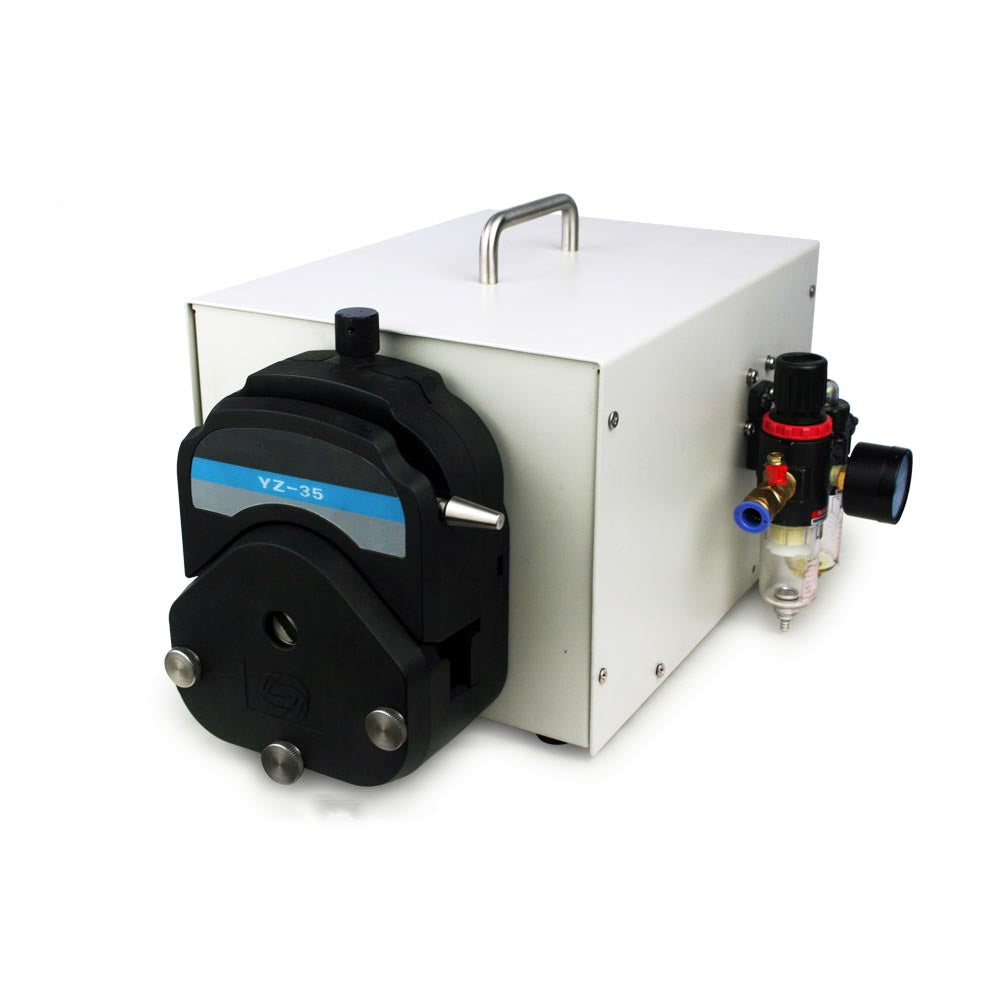

FG601S-Q Peristaltic pump applicable pump head, tubing and flow rate
| Drive Type |
Pump Head |
Channel Number |
Tubing(mm) |
Flow Rate per Channel(ml/min) |
| FG601S-Q |
YZ35 |
1 |
73#, 82# |
2000-13000ml/min |
Please click to here to download the instruction manual.
