Function and Feature
- Adopts the Pneumatic Type Explosion-proof motor, safe and reliable.
- With the start/stop control.
- Large torque design, can be installed a variety of pump heads.
- The table structure, convenient operation.
- Stepless seed regulation, by adjusting the air pressure or flow valve control.
- High IP65 protection grade, suitable for complex working environment.
- Suitable for liquid transfer without accuracy requirement.
Technical Parameters
- Flow rate: 9-6000ml/min
- Speed range:140-600rpm(On load, speed fluctuation is bigger than motor driven)
- Adjust speed: Stepless speed regulation ,by adjust the air pressure or flow valve control.
- Control function: Start/stop (standard)，reversing function (optional)
- Air supply pressure: 0.1-0.7MPa
- Air consumption: ≥0.3m³/min
- Working environment: Temperature 0°C-40°C，relative humidity <80%
- IP grade: IP65
- Casing dimensions(LxWxH): 309*316*237mm
- Weight: 11Kg

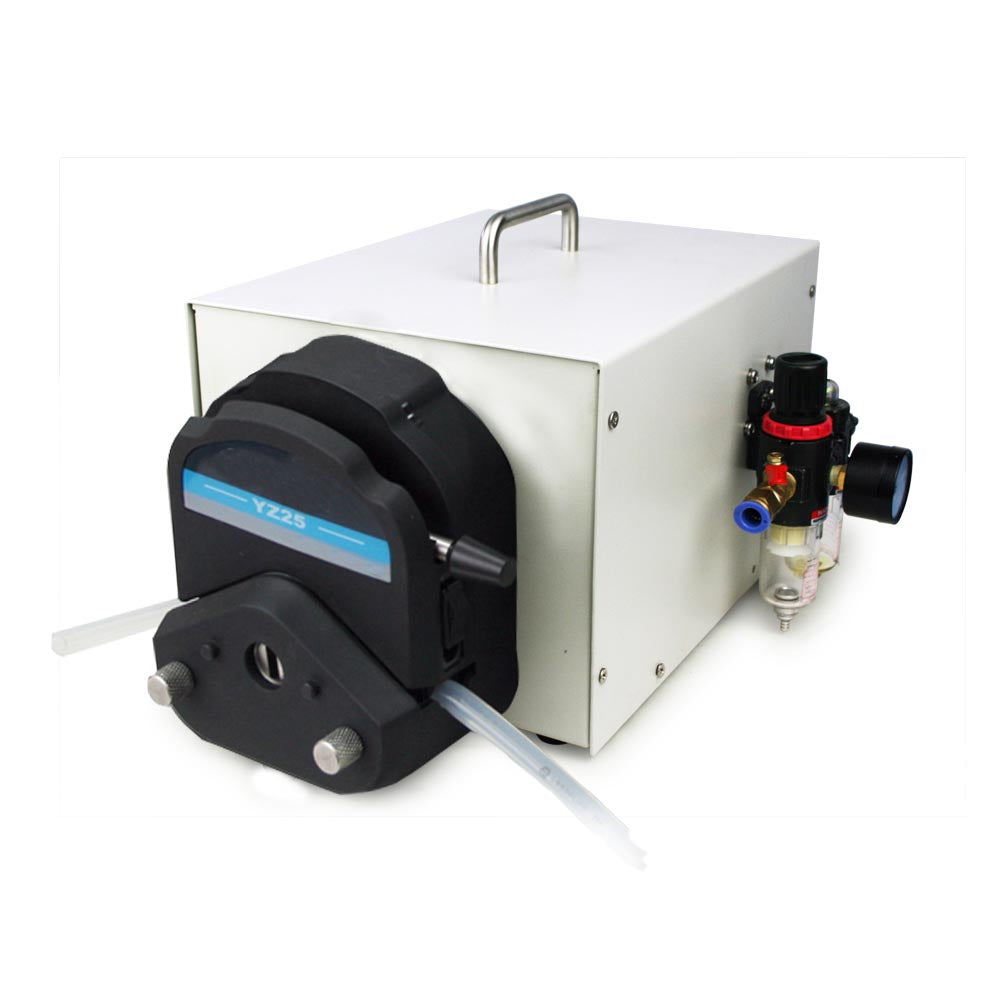

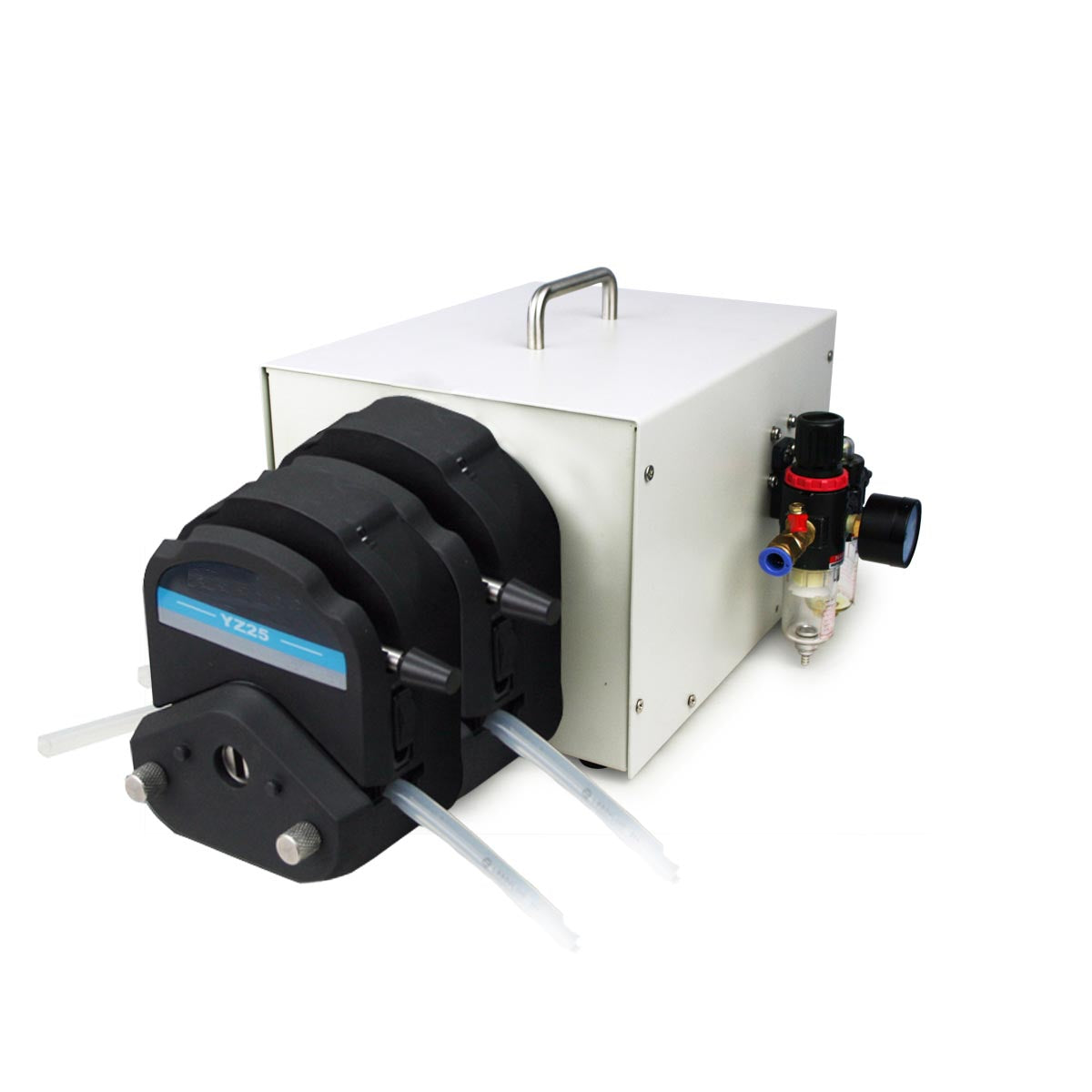

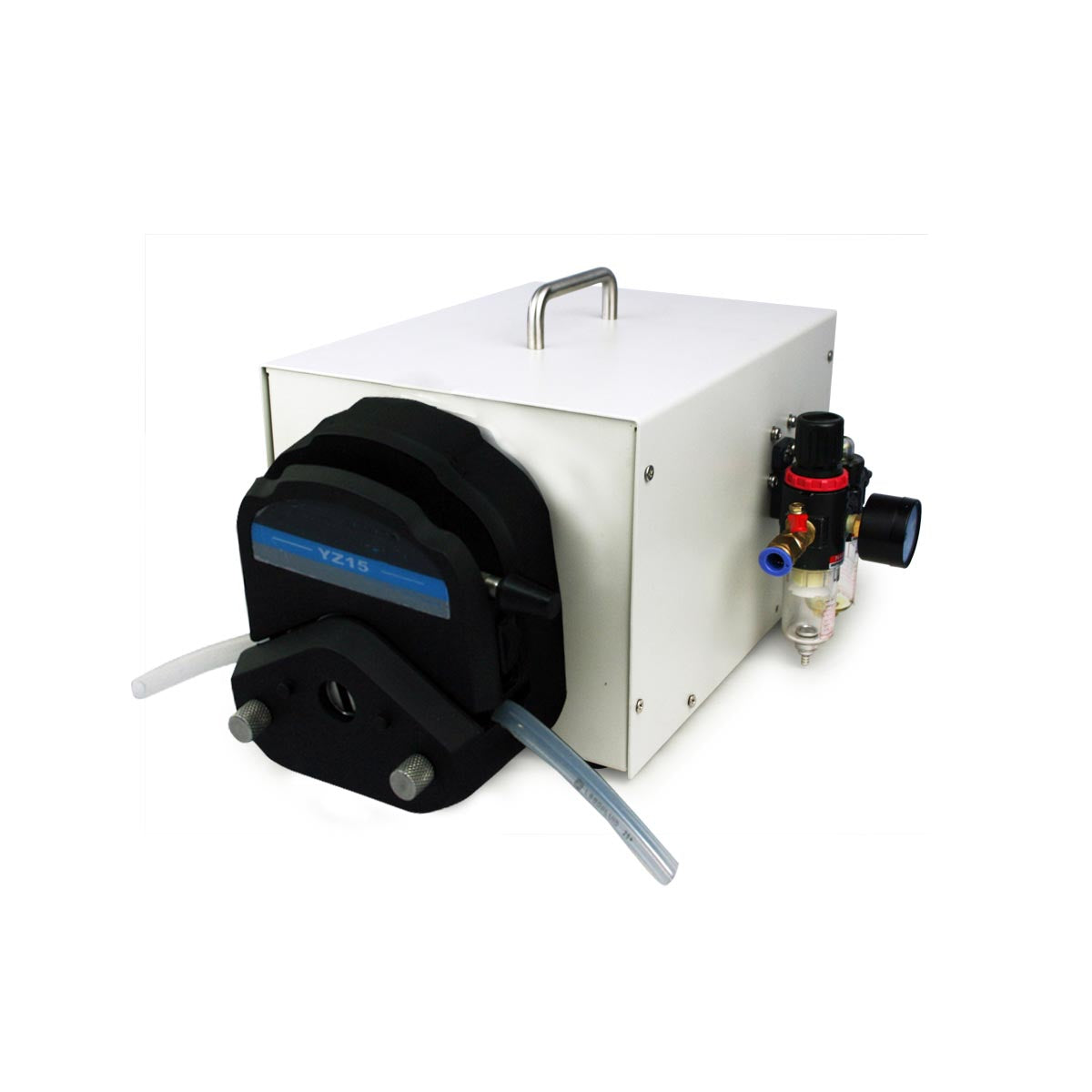

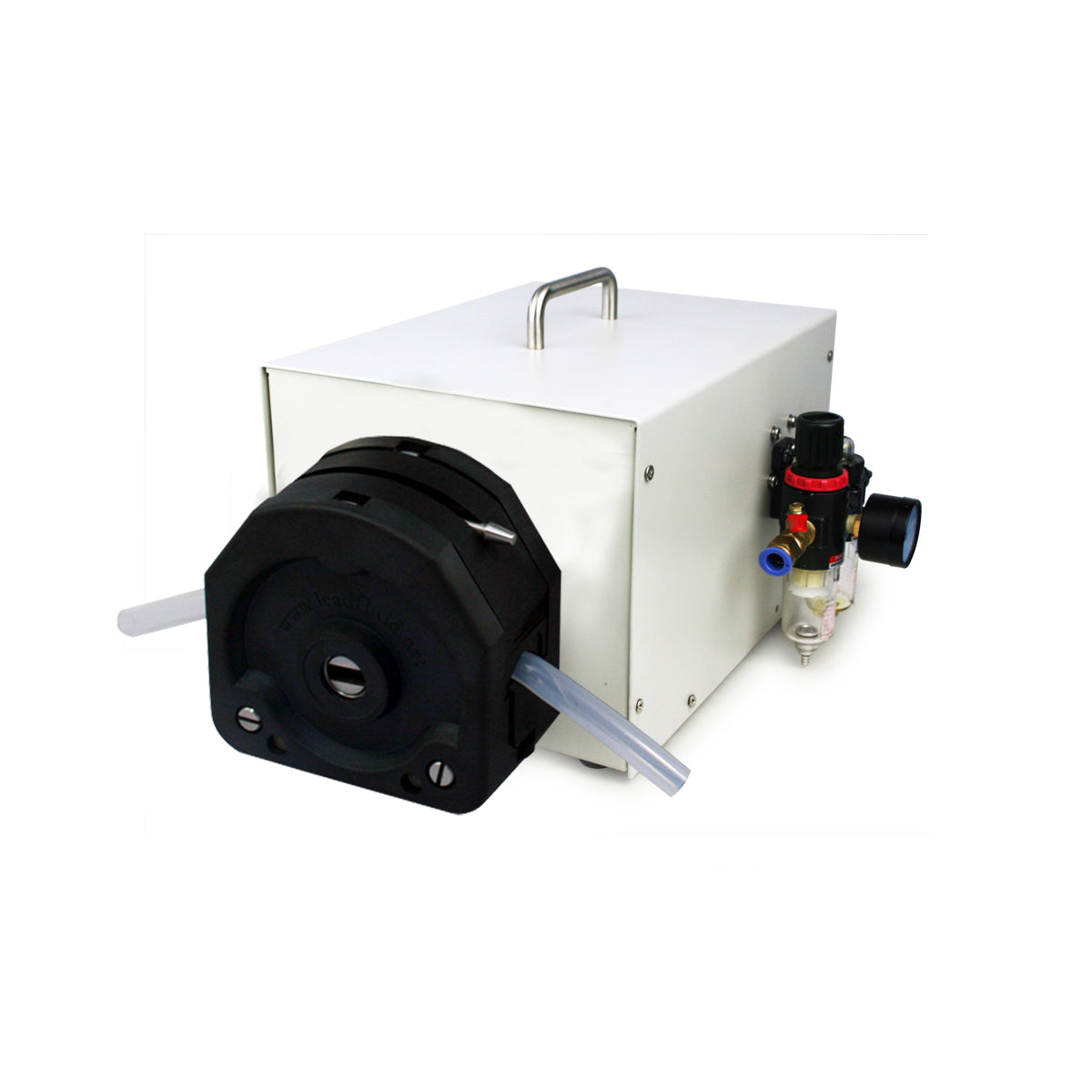

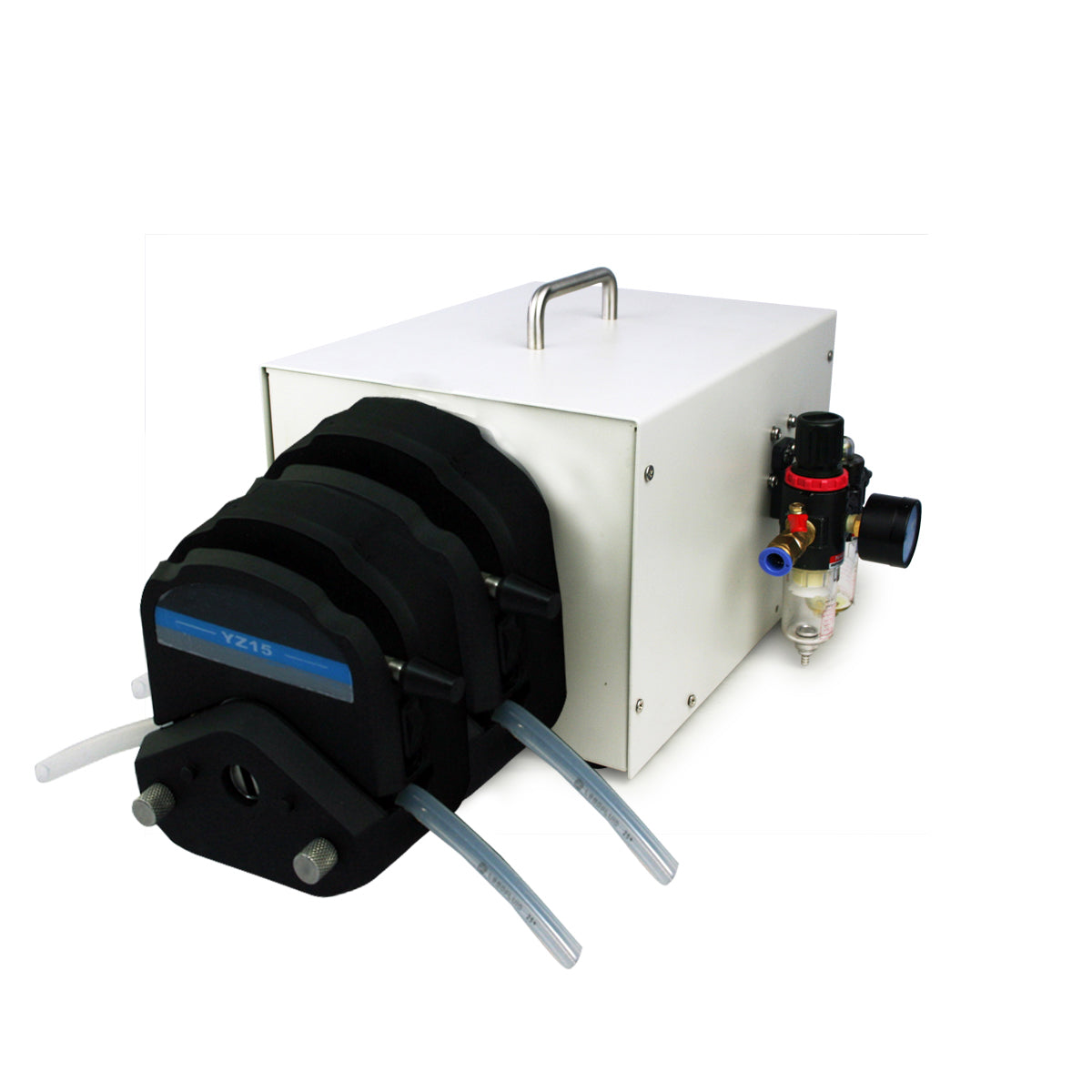

FG600S-Q Peristaltic pump applicable pump head, tubing and flow rate
| Drive Type | Pump Head | Channel Number | Tubing(mm) | Flow Rate per Channel(ml/min) |
| FG600S-Q | YZ15 | 1, 2 | 13#, 14#, 19#, 16#, 25#, 17# | 9-1700 |
| YZ25 | 1, 2 | 15#, 24# | 250-1700 | |
| YT15 | 1, 2 | 13#, 14#, 19#, 16#, 25#, 17#, 18# | 9-2300 | |
| YT25 | 1, 2 | 15#, 24#, 35#, 36# | 250-2900 | |
| KZ25 | 1 | 15#, 24#, 35#, 36# | 350-6600 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
