Pump Head Material
Shell: PPS Card: PPS Roller: SS304 Roller shaft: SS304
DT15 Flow Parameters
Tube material: Silicone, Pharmed, Viton, Chemical, Tygon 3603 etc. Wall thickness:1.6mm
| ID(mm) | 2.4 | 3.1 | 4.8 | 6.4 |
| Tube | 19# | 16# | 25# | 17# |
| mL/rpm | 0.67 | 1.0 | 2.2 | 3.7 |
| Flow rate (mL/min) (Continuous operation at 600rpm) |
400 | 600 | 1320 | 2240 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
Pump Head Specification

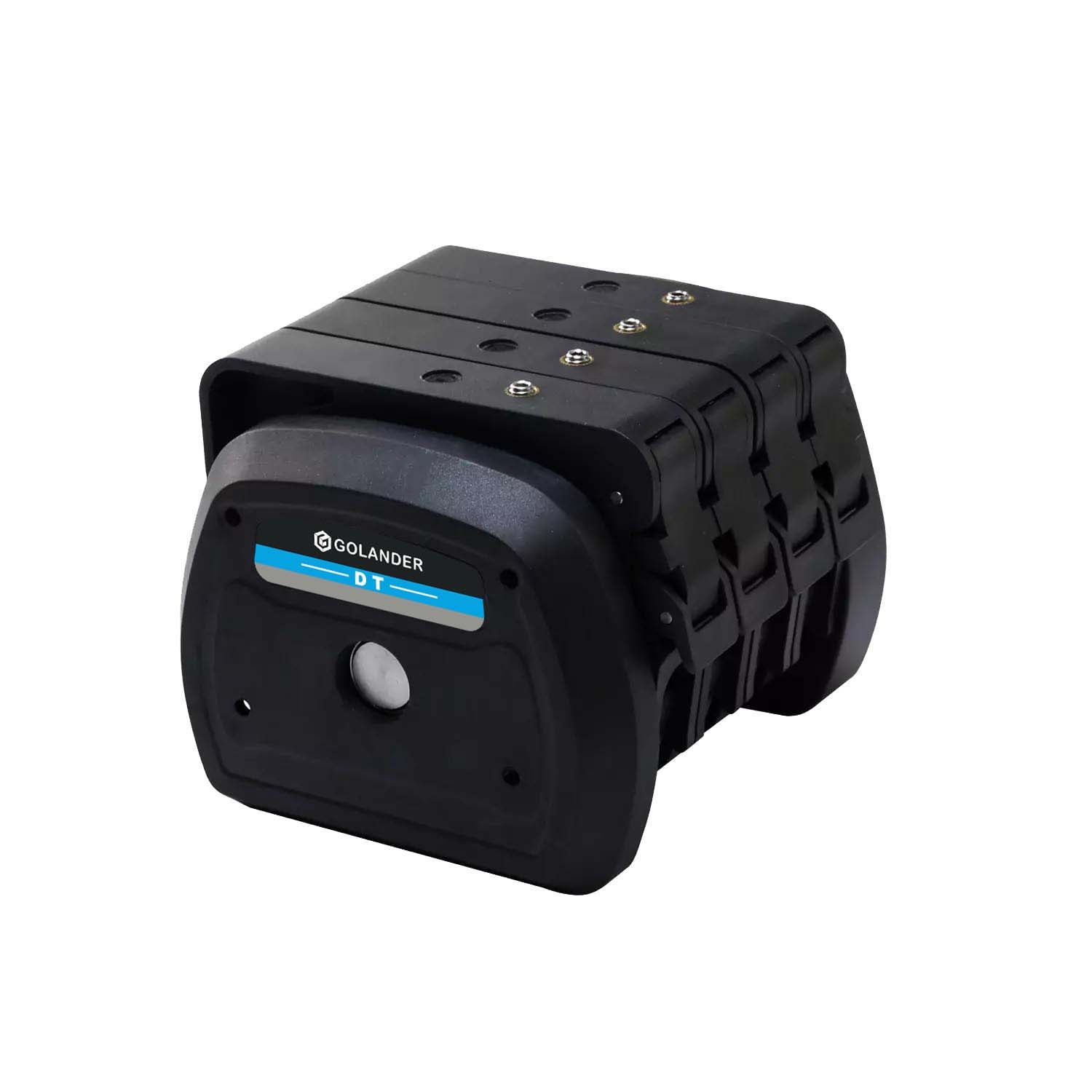

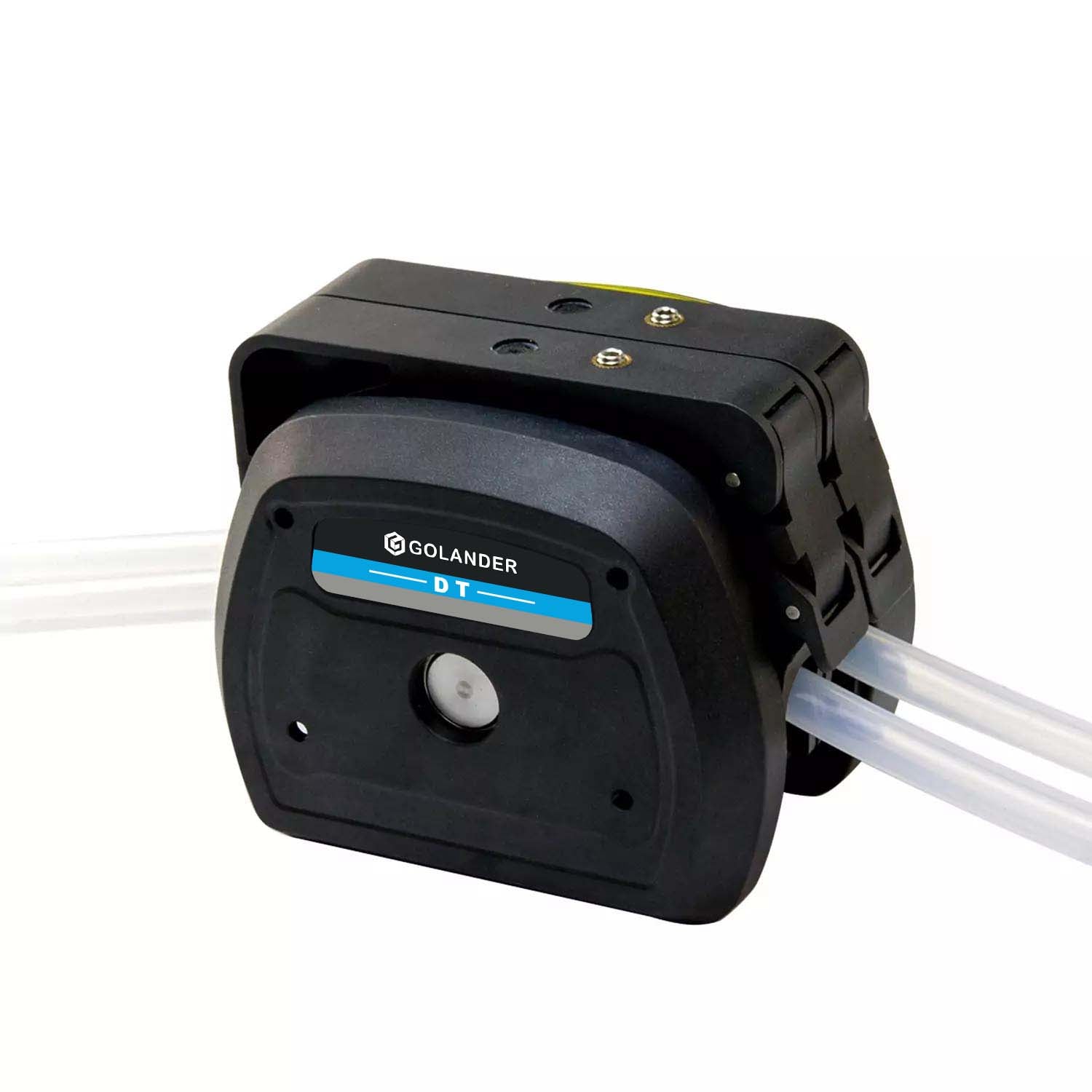

Channel: 1, 2, 4
Number of rollers: 4
Speed range: 0.1-600rpm
Flow range: 0.067-2240mL/min
Gap adjustment: fine adjustable
Liquid Temperature: Less than 200°C
Corrosion Resistance: PPS is resistant to most acid, alk ali, salt liquids and organic sol vents.
Motor: Stepper motor, servo motor, AC gear motor, DC gear motor etc.
Tube Life Comparison Table
Notes: The above data are all test results obtained by laboratory under normal temperature and pressure for the transmission of pure water, which are for reference only; the actual service life may be affected by specific factors such as pressure, temperature, medium characteristics, tube batch and wall thickness.
