Description
DT10 series are designed for small flow and multi-channel fluid transfer, easy to install and replace tubing. Self adapting spring adjusts pressing gap automatically according to the tubing size. The rollers are made of 304 stainless steel. A pump head consists of three parts: frame, roller device and cartridge. According to the numbers of channel, there are DT10-18, DT10-28, DT10-48 and DT10-88.
Features
- Multi-channel transfer
- Change tubing easily
- Install tubing easily
- Occlusion can be adjusted slightly by ratchet wheel to fit different tubing wall thicknesses requirements.
- 8 rollers to reduce pulsation and flow rates slightly.
- Skillful trigger structure, convenient to eject the cartridges.
Specifications
- Flow range: 0.0002~82ml/min
- Card material: POM
- Roller material: 304 stainless steel
- Roller number: 8
- Gap adjustment: micro-adjustment
- Applicable tube: wall thickness 0.8~1mm (0.03 ~0.04 inch) ID ≤3.17 mm (0.12 inch), 13#, 14#.
| Model | Channels | Max Speed | Tubing | Max Flow Rate | Weight (kg) |

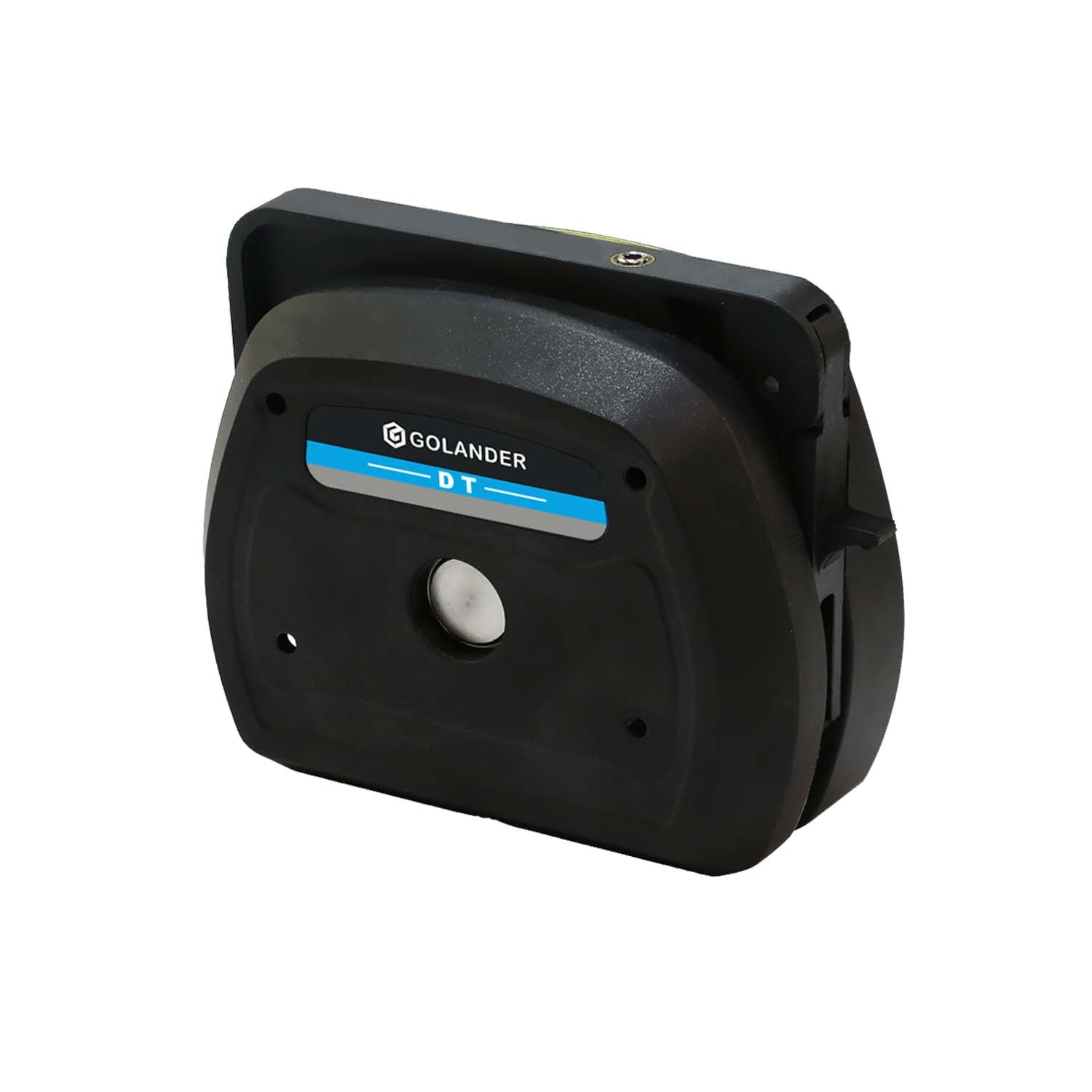

| DT10-18 | 1 | 100 rpm |
ID<3.17mm, Wall thickness: 0.8-1mm, |
82 mL/min | 0.72 |

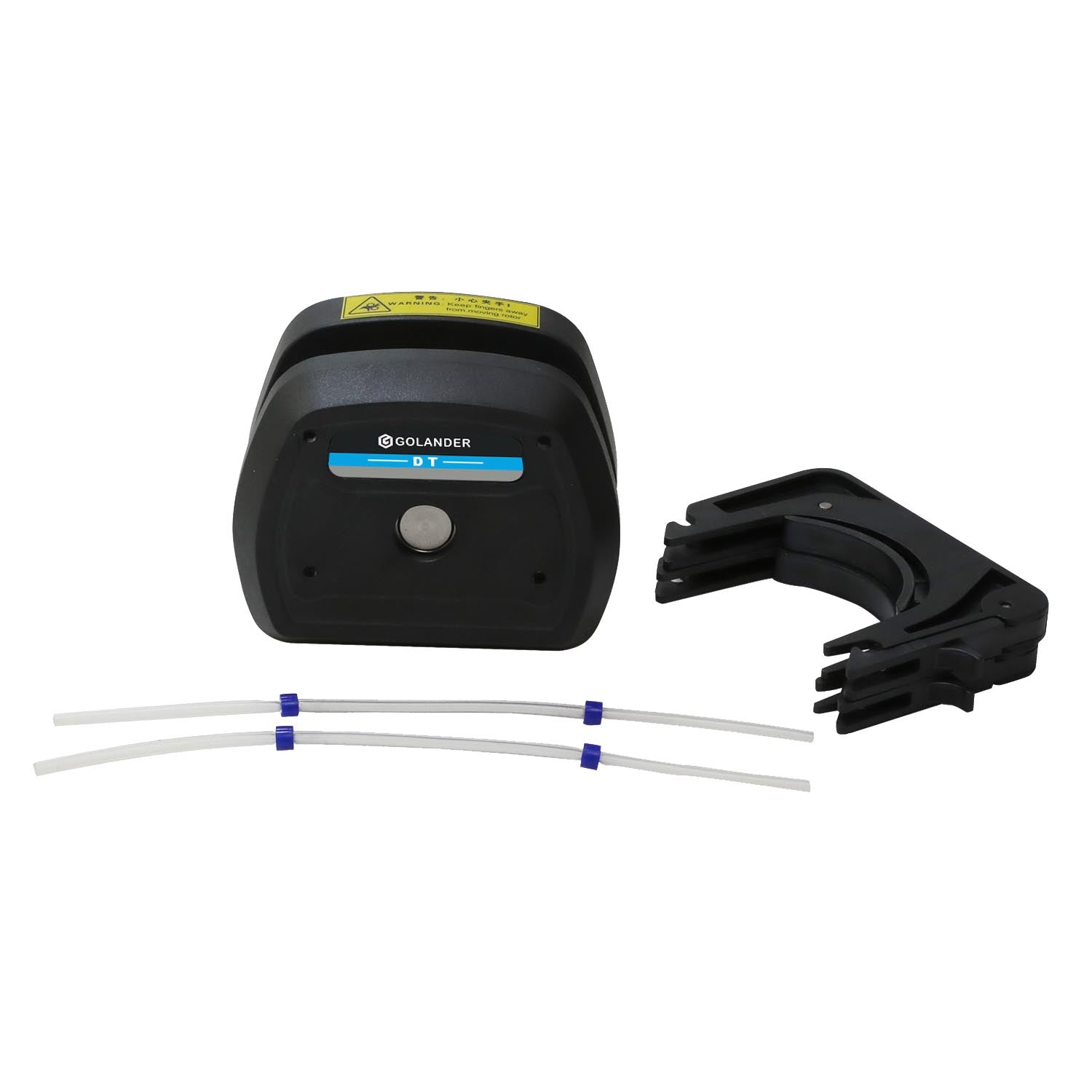

| DT10-28 | 2 | 0.78 | |||

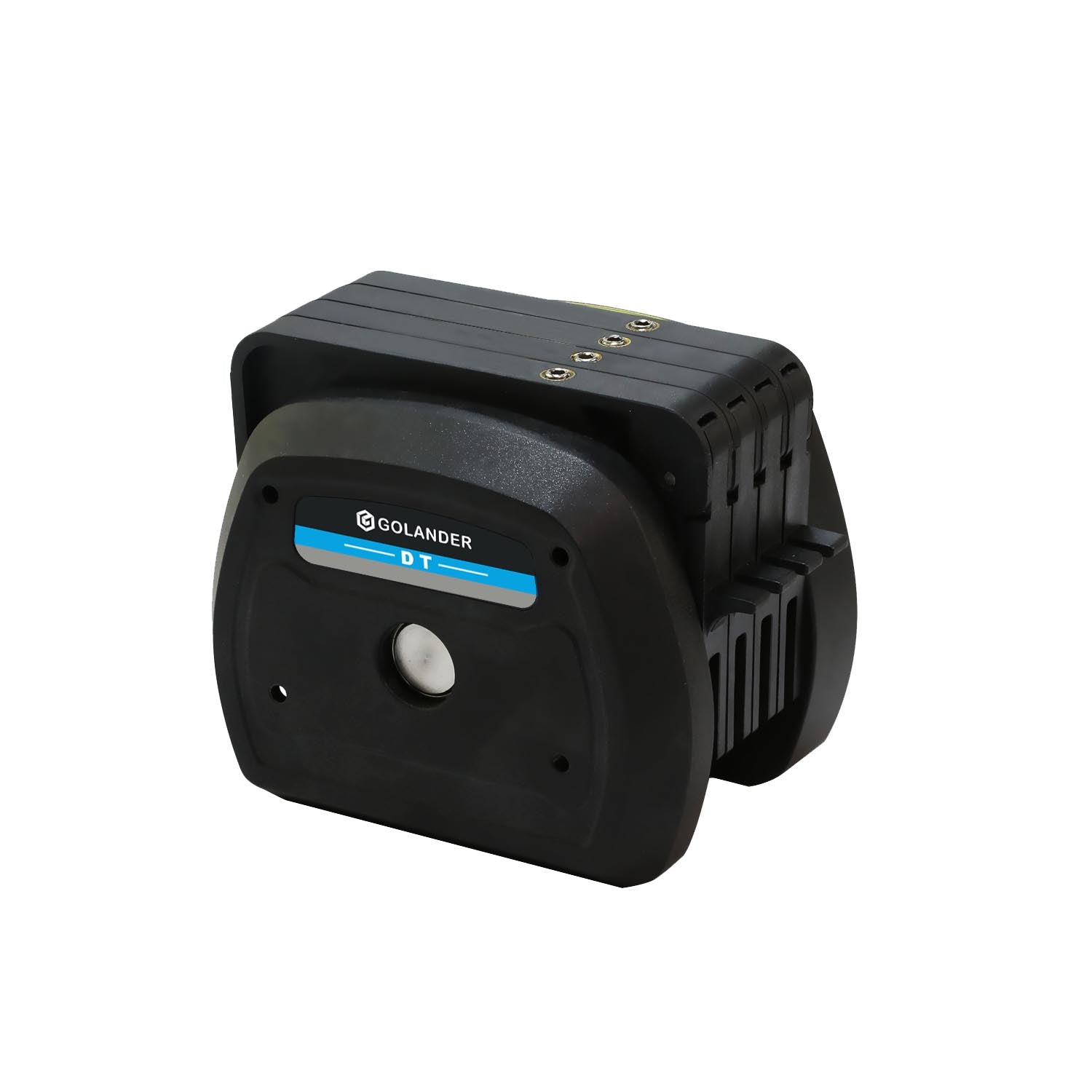

| DT10-48 | 4 | 1.08 | |||

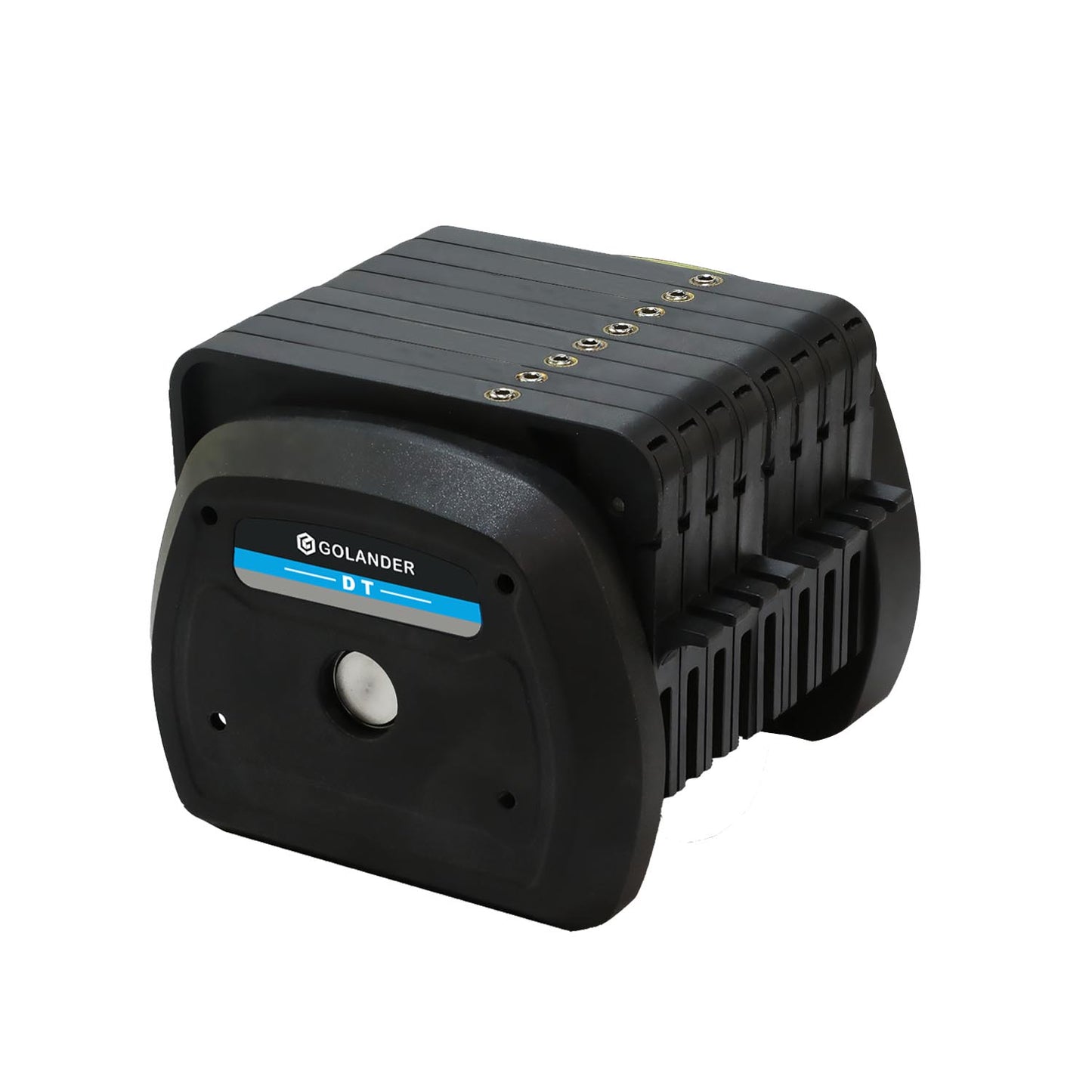

| DT10-88 | 8 | 1.68 |
