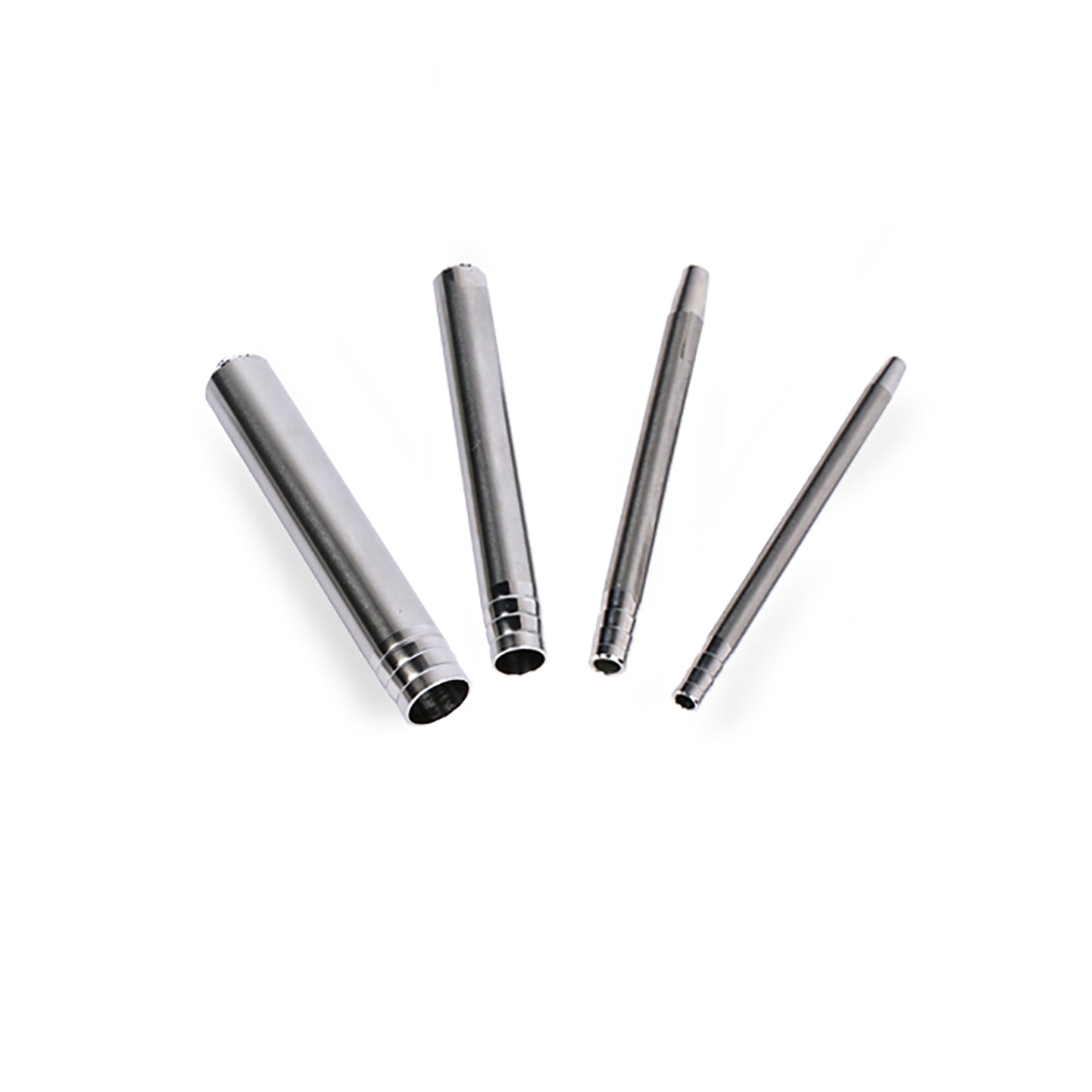

Dispensing needle is mainly designed to prevent liquid-dripping when stop, it has reasonable structure and easy to be installed.
Material: 304 stainless steel
Applicable tubes：1x1, 2x1, 2.4x0.8
13#, 14#, 19#, 16#, 25#, 17#, 18#
15#, 24#, 35#, 36#
|
Model Number
|
Material
|
Dimensions (IDxODxLength mm)
|
For Tubing
|
|
GZT-1
|
304
|
0.7x0.9x100
|
13# 0.5x0.92
|
|
GZT-2
|
304
|
1.8x2x100
|
1x0.92
|
|
GZT-3
|
316L
|
2x3x100
|
2x0.92 3x0.92 14# 19#
|
|
GZT-6
|
316L
|
4x6x100
|
16#25#15#
|
|
GZT-8
|
316L
|
5x8x100
|
17#24#
|
|
GZT-12
|
316L
|
9x12x100
|
18#35#36#73#
|
|
GZT-12B
|
316L
|
4x12x100
|
36# 73#
|
|
GZT-16
|
316L
|
13x16x100
|
82#
|

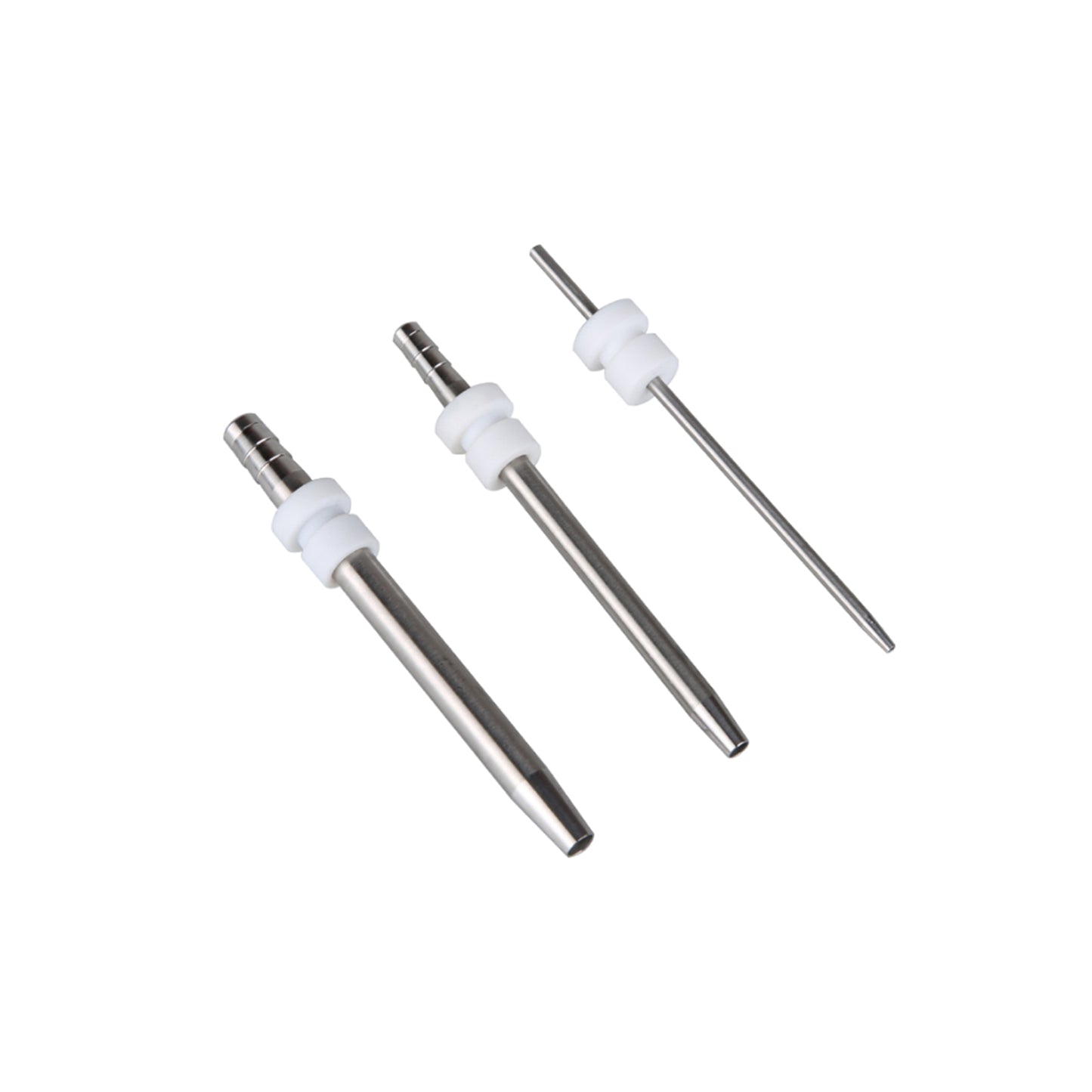

The sheath, shown as the white part in the picture, is removable and helps the piece fit securely in the clamp of the filling table.
|
Sheath for |
Sheath
Material |
Sheath Dimensions
(IDxODxL mm) |
Needle
|
Needle
Material |
Needle Dimensions (IDxODxL mm) |
For Tubing |
| GDT-1 |
PTFE
|
112x15
|
ZT-1
|
304
|
0.7x0.9x100 | 13#, 0.5x0.92 |
| GDT-2 |
PTFE
|
2x12x15
|
ZT-2
|
304
|
1.8x2x100 | 1x0.92 |
| GDT-3 |
PTFE
|
3x12x15
|
ZT-3
|
316L
|
2x3x100 | 2x0.92, 14#, 19# |
| GDT-6 |
PTFE
|
6x12x15
|
ZT-6
|
316L
|
4x6x100 | 16#, 25#, 15# |
| GDT-8 |
PTFE
|
8x12x15
|
ZT-8
|
316L | 5x8x100 | 17#, 24# |
| GDT-12 |
N/A
|
N/A |
ZT-12
|
316L | 9x12x100 | 18#, 35#, 36#,73# |
| GDT-12 | N/A | N/A | ZT-12B | 316L | 4x12x100 | 36#, 73# |
