Functions and Features
- Suitable for transmission high viscosity liquid and high pressure application
- Transfer liquid without pulse; low noise
- Magnetic coupling for easy maintenance
- Brushless servo drive, high efficiency, no maintenance necessary
- Display and adjust flow rate
- Time dispense function
- External signal to control start/stop, direction, and rpm speed
- MODBUS RS485 communication interface ready
- ABS plastic case
- Switching power supply for either 110V or 220V
Specifications
| Pump Head | MG204, MG209, MG213 (PEEK or PTFE) |
| Communication | RS485, Modbus communication protocol |
| Display | 4-Digit LED |
| Direction | One Direction |
| Speed Range | 300-3000 rpm |
| Liquid Viscosity | ≤200cSt |
| Particle Size | ≤10um |
| Dispense Mode Time | 0.1-999 seconds |
| Speed Resolution | 1rpm |
| Operation | Keypad, Footswitch and Hand Dispenser (Optional) |
| External Control | 5V (12V/24V optional) to control Start/Stop, Direction 0-5V (0-10V,4-20mA optional) to control speed |
| Power Supply | AC 90-264V 50Hz/60Hz |
| Consumption | <150W |
| Working Environment | Temperature 0-40°C, humidity<80% |
| Dimensions (LxWxH) | 342x180x198mm (13.5x7.1x7.8inch) |
| Drive Weight | 3.3kg (7.3lbs) |
| IP Standard | IP31 |

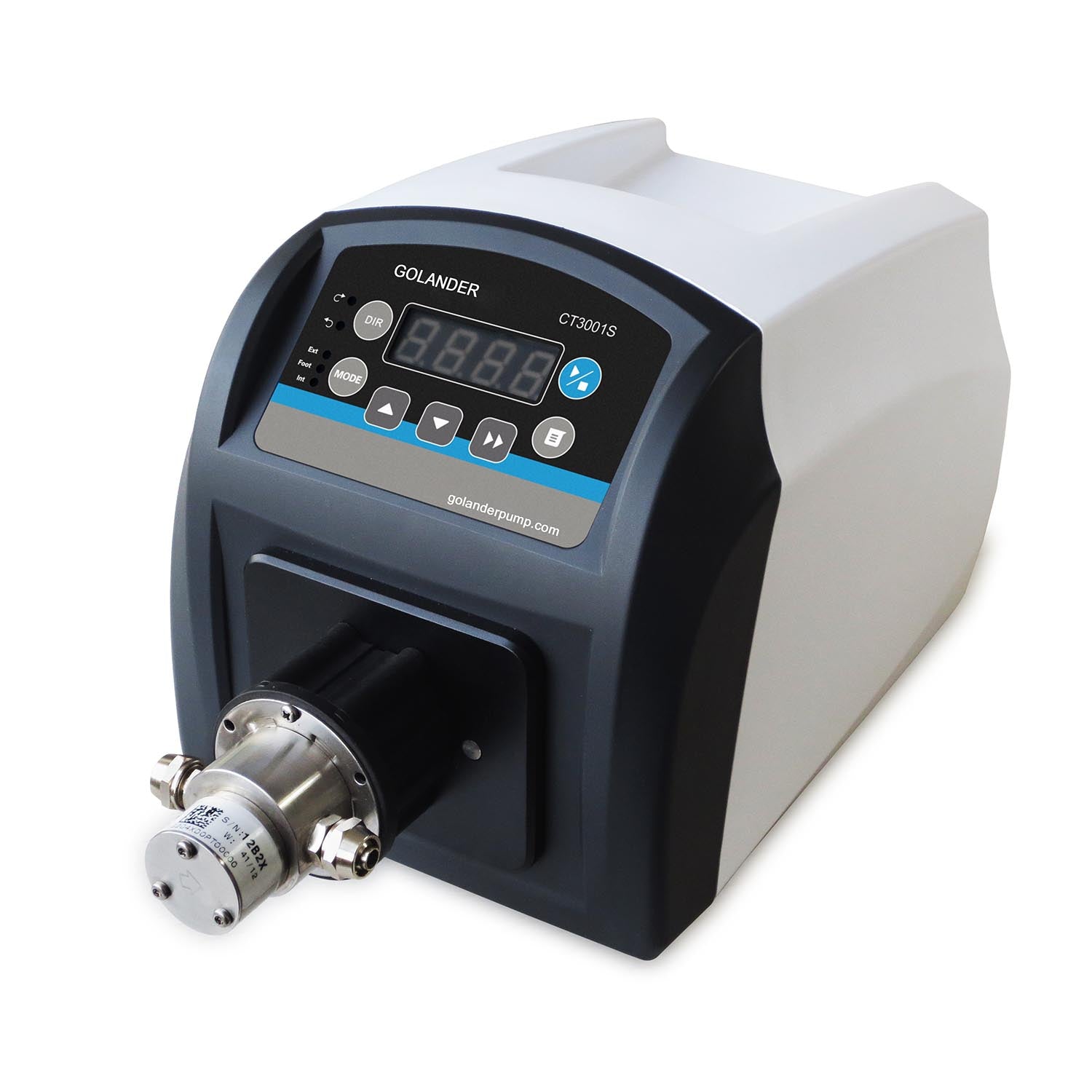

CT3001S Suitable Pump Heads
| Pump Head | Gear Material | Max Output Pressure | Flow Range | Liquid Temperature |
| MG204 | PEEK | 0.8MPa (116psi) | 90-900mL/min | -45-120°C |
| MG209 | PEEK | 0.8MPa (116psi) | 180-1800mL/min | -45-120°C |
| MG213 | PEEK | 0.3MPa (44psi) | 270-2700mL/min | -45-120°C |
