Description
BT100S-1 variable speed peristaltic pump provides high torque from motor for multiple-channel pump head, flow range from 0.00011 to 1700 mL/min with variable pump heads and tubing. It has not only basic functions such as reversible direction, start/stop, full speed (for fast cleaning), adjustable speed, but also dispensing function to easily repeat liquid dispensing by time or volume. With RS485 MODBUS interface, the pump is easy to be controlled by external device, such as computer, human machine interface or PLC.
Functions and Features
- LCD displays rotating speed and working mode.
- Membrane keypad.
- Reversible direction, start/stop control and adjustable speed.
- Time dispense mode: automatically dispense by setting the duration for each dose, lag time between doses and number of cycles.
- 0.5% high precision rotating speed control with 0.1 rpm speed resolution when speed is between 0-100 rpm, 1 rpm speed resolution when speed is between 100-150 rpm.
- External logic level signal can control start/stop, direction and dispense functions; external analog signal can adjust the rotating speed. Signal is optically isolated.
- With RS485 MODBUS interface, easy to communicate with external device.
- Internal double-layer isolation structure; circuit board with conformal coating makes the pump dust-proof and moisture proof.
- Anti-electromagnetic interference feature, wide input voltage range for complex power environment.
- Stainless steel enclosure, easy to clean, resistant to the corrosion of the acid, alkali, sodium and organic solvents.
Specifications
- Flow range: 0.00011-1700 mL/min
- Speed range: 0.1-150 rpm
- Speed resolution (rpm): 0.1-100 rpm, 0.1 rpm resolution; 100-150 rpm, 1 rpm resolution
- Speed accuracy: 0.5%
- Power supply: AC 85-240V 50Hz/60Hz (standard)
- Power consumption: < 40W
- External control: Input level 5V, 12V (standard), 24V (optional). External control analog 0-5V (standard); 0-10V, 4-20mA (optional)
- Communication interface: RS485 communication interface, MODBUS protocol is available
- Operating condition: Temperature 0~40°C; Relative humidity <80%
- IP grade: IP31
- Dimensions (L x W x H): 285 x 150 x 195 mm (11.2 x 5.9 x 7.7 inch)
- Weight: 6.5 kg (14.3 lbs)
BT100S-1 Applicable Pump Heads and Tubing, Flow Parameters
| Drive type | Pump head | Channel | Tubing size (mm) | Flow rate per channel (mL/min) |

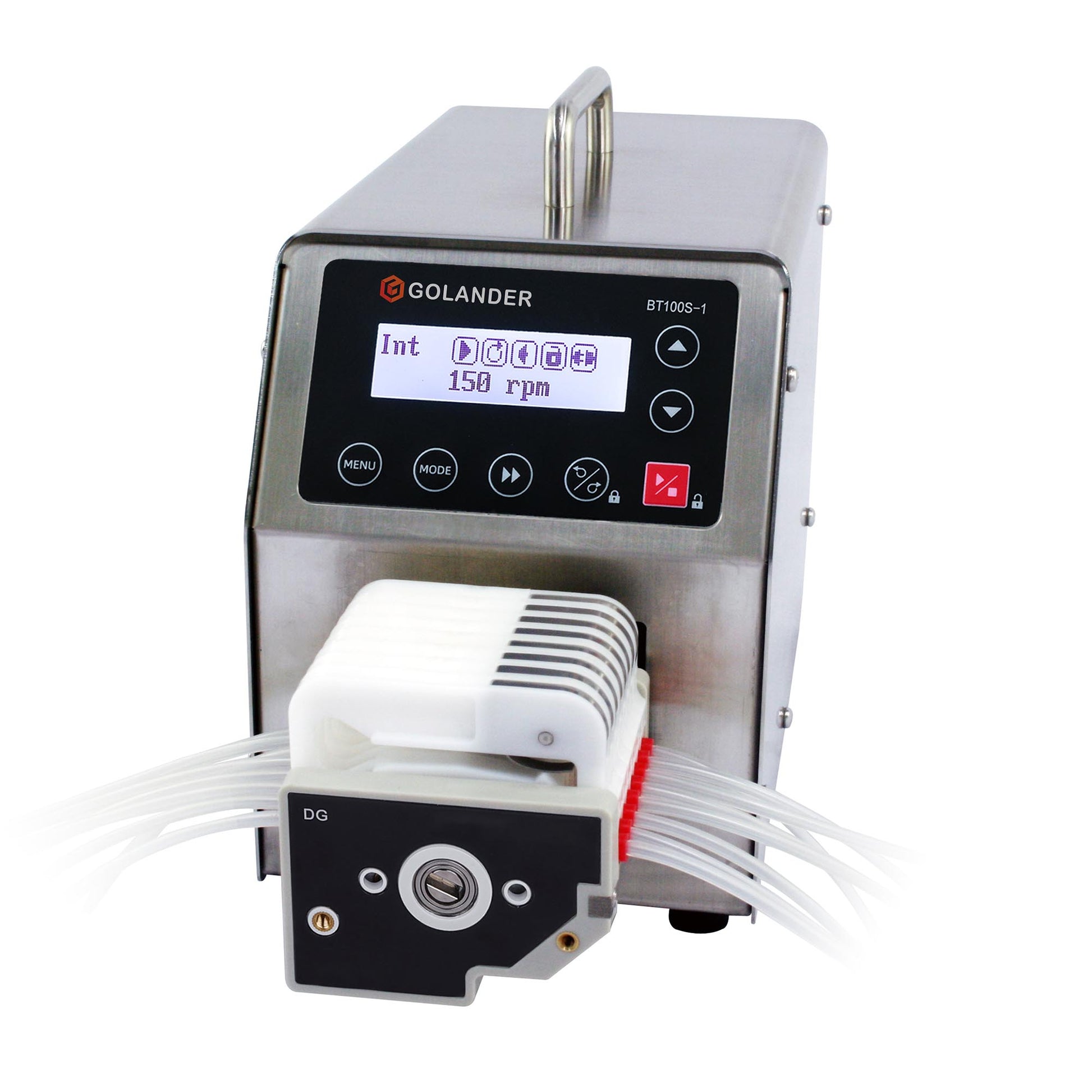

| BT100S-1 | DG6-8 (6rollers) | 8 | Wall:0.8~1, ID:≤2.4 | 0.00016~26 |
| DG10-8 (10rollers) | 8 | Wall:0.8~1, ID:≤2.4 | 0.00011~20 | |

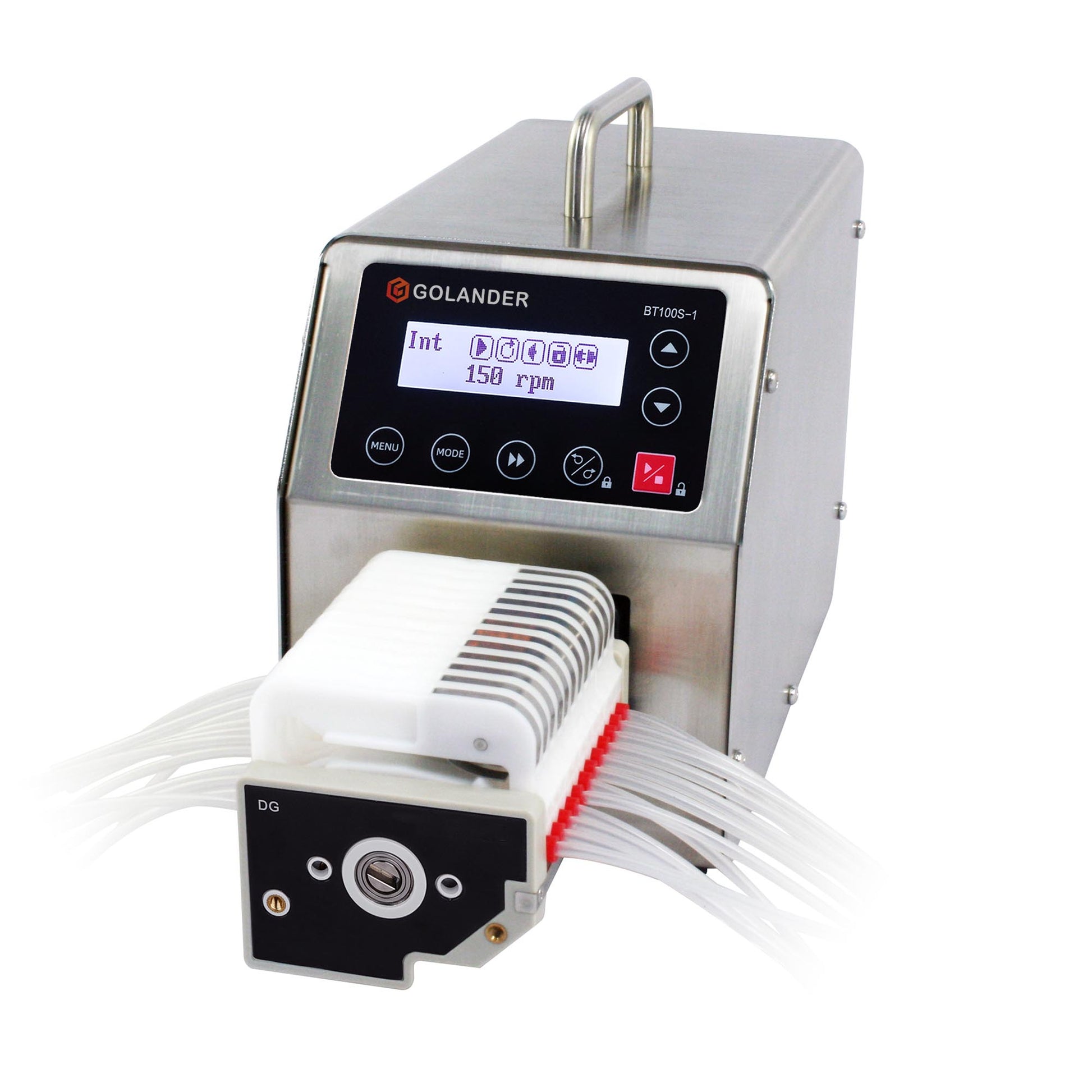

| DG6-12 (6rollers) | 12 | Wall:0.8~1, ID:≤2.4 | 0.00016~26 | |
| DG10-12 (10rollers) | 12 | Wall:0.8~1, ID:≤2.4 | 0.00011~20 | |

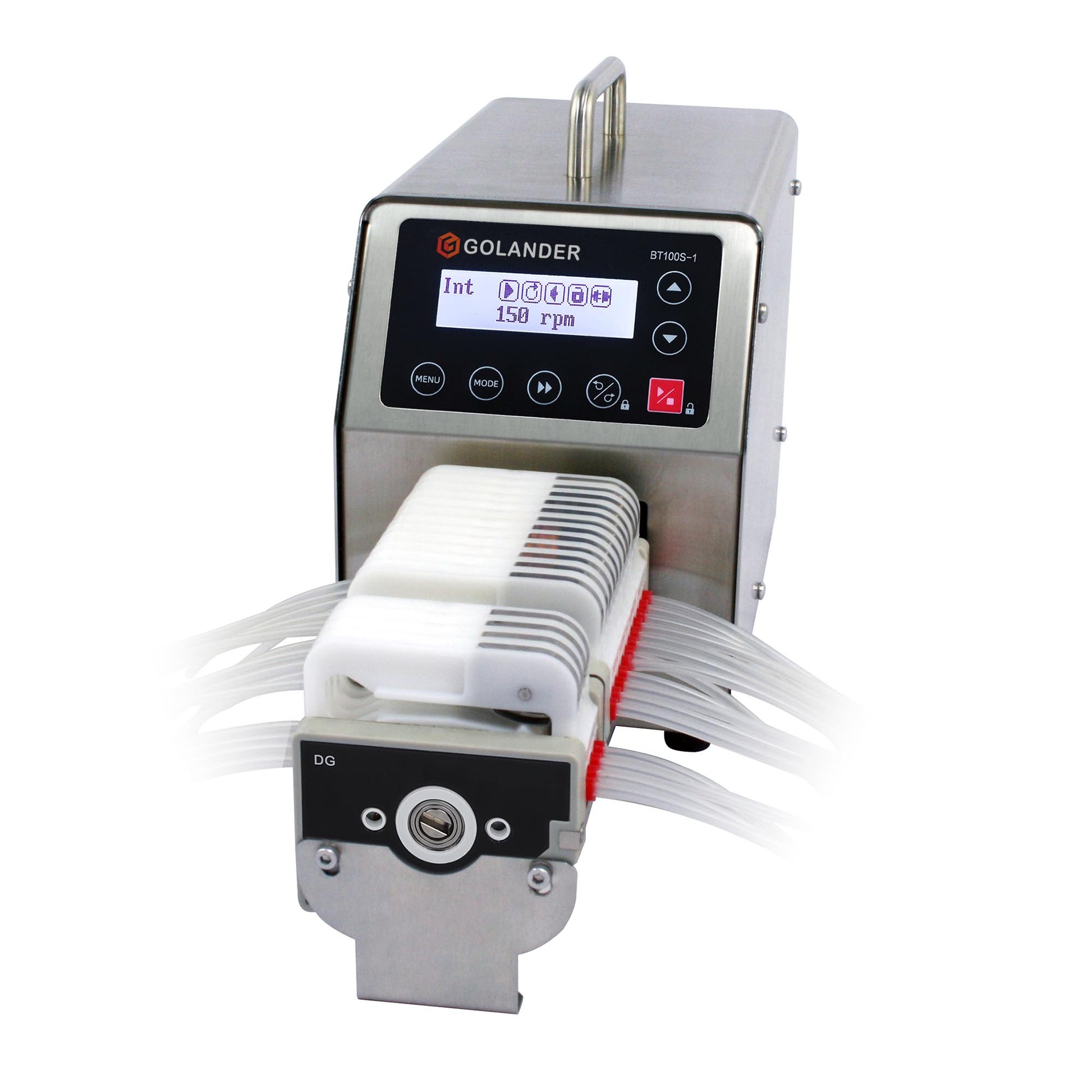

| DG6-16 (6rollers) | 16 | Wall:0.8~1, ID:≤2.4 | 0.00016~26 | |
| DG10-16 (10rollers) | 16 | Wall:0.8~1, ID:≤2.4 | 0.00011~20 | |

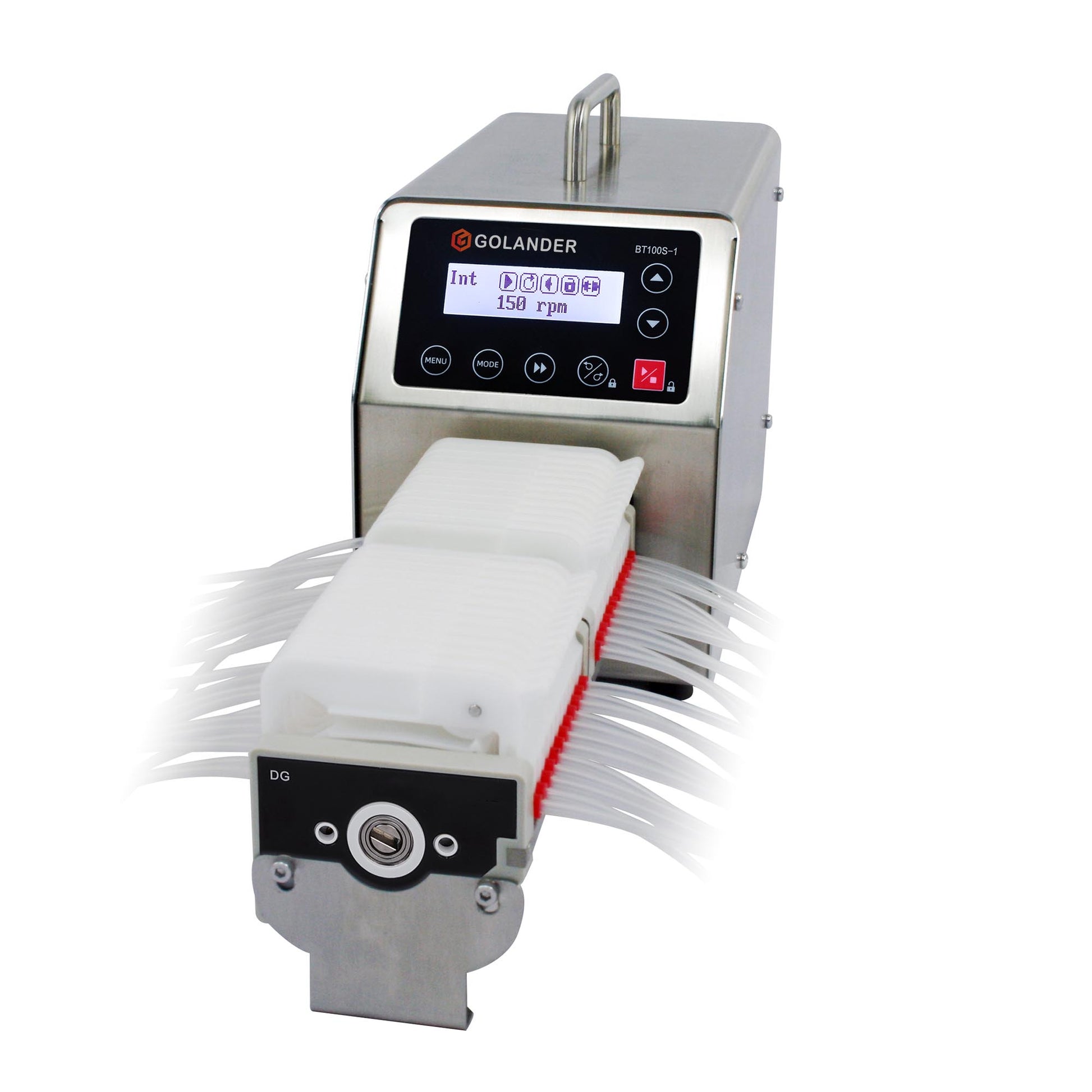

| DG6-24 (6rollers) | 24 | Wall:0.8~1, ID:≤2.4 | 0.00016~26 | |
| DG10-24 (10rollers) | 24 | Wall:0.8~1, ID:≤2.4 | 0.00011~20 | |

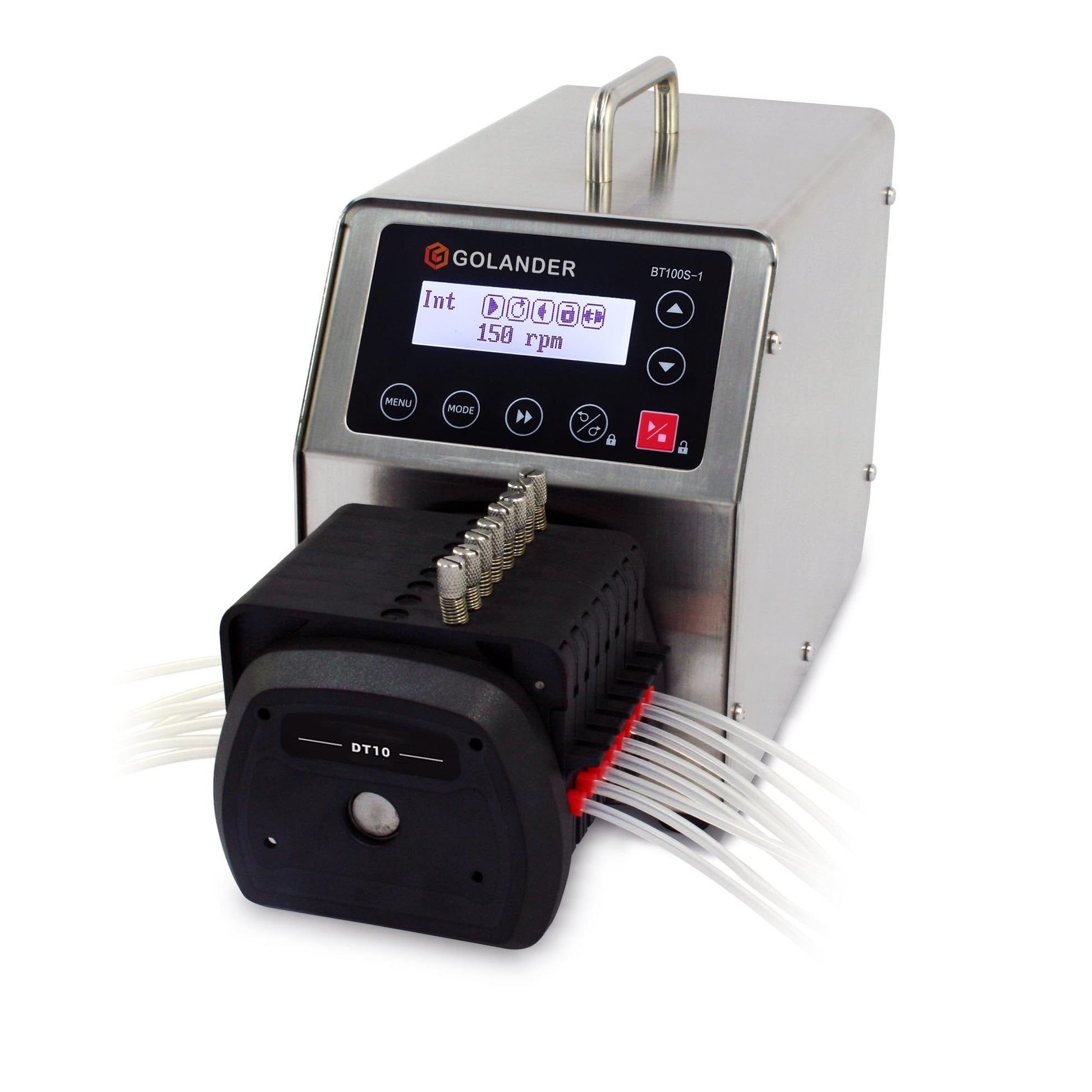

| DT10-88 | 8 | 13# 14#, Wall:0.8~1, ID:≤3.17 | 0.0002~82 | |

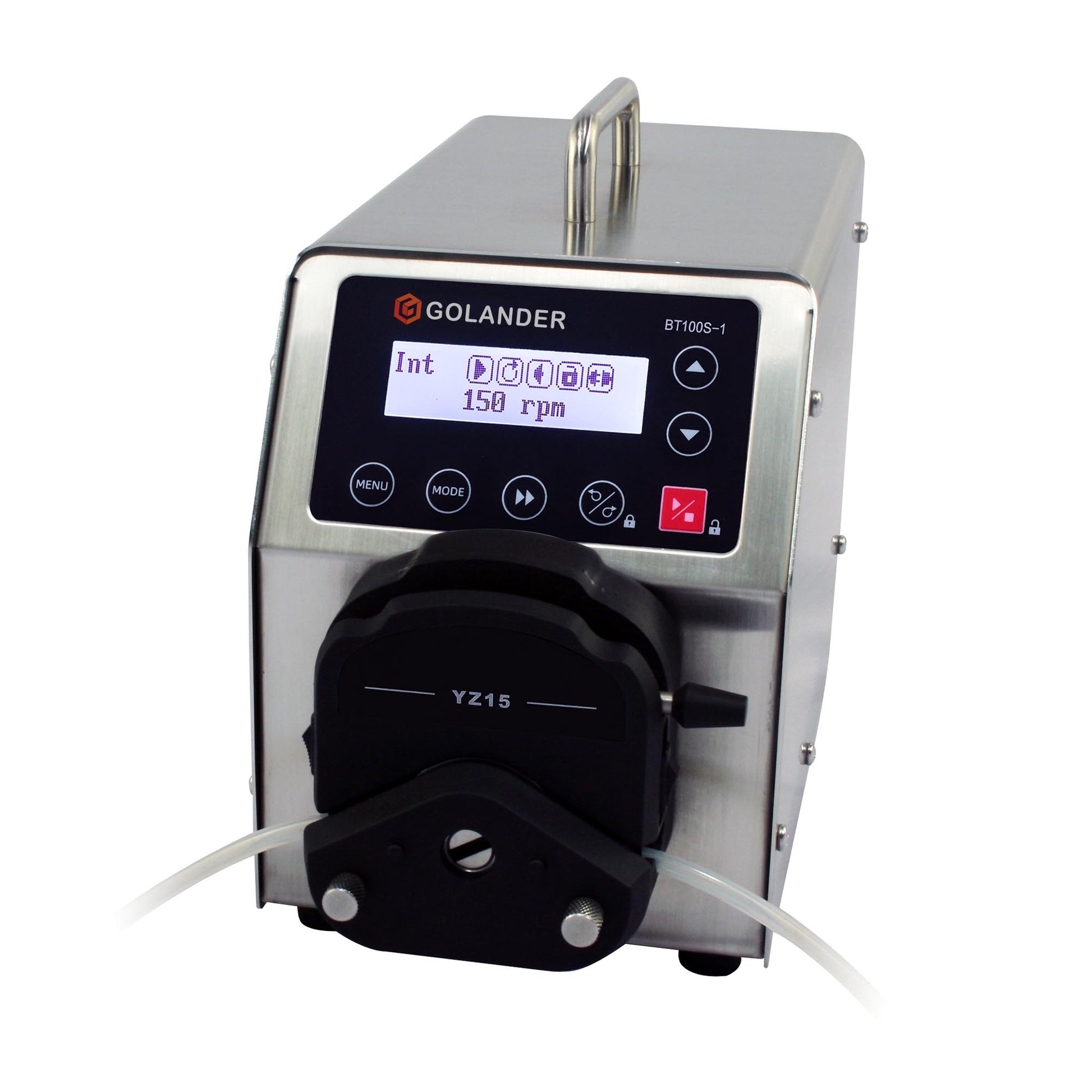

| YZ15 | 1 | 13# 14# 16# 19# 25# 17# | 0.006~420 | |
| YZ25 | 1 | 15# 24# | 0.16~420 | |

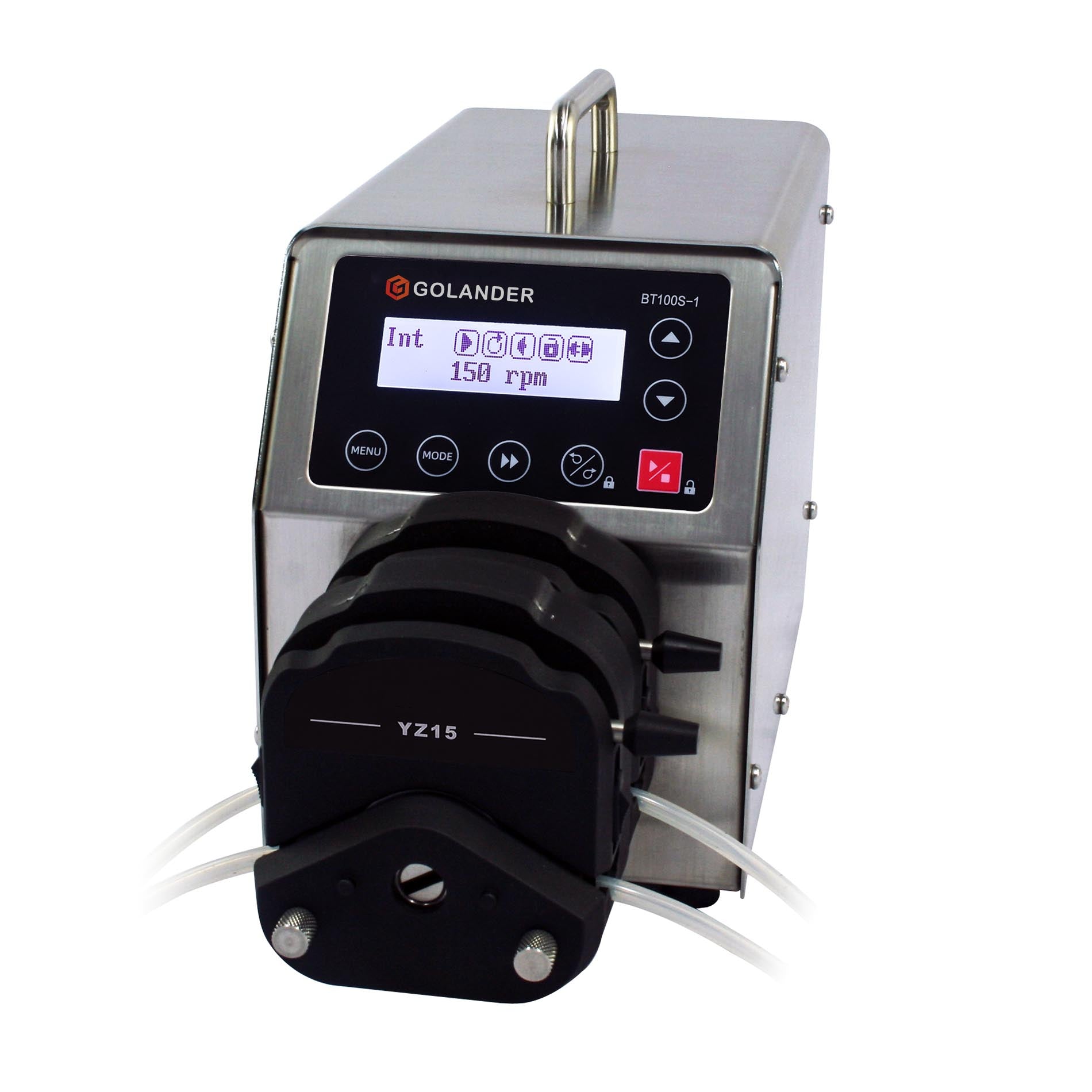

| 2 x YZ15 | 2 | 13# 14# 16# 19# 25# 17# | 0.006~420 | |
| 2 x YZ25 | 2 | 15# 24# | 0.16~420 | |

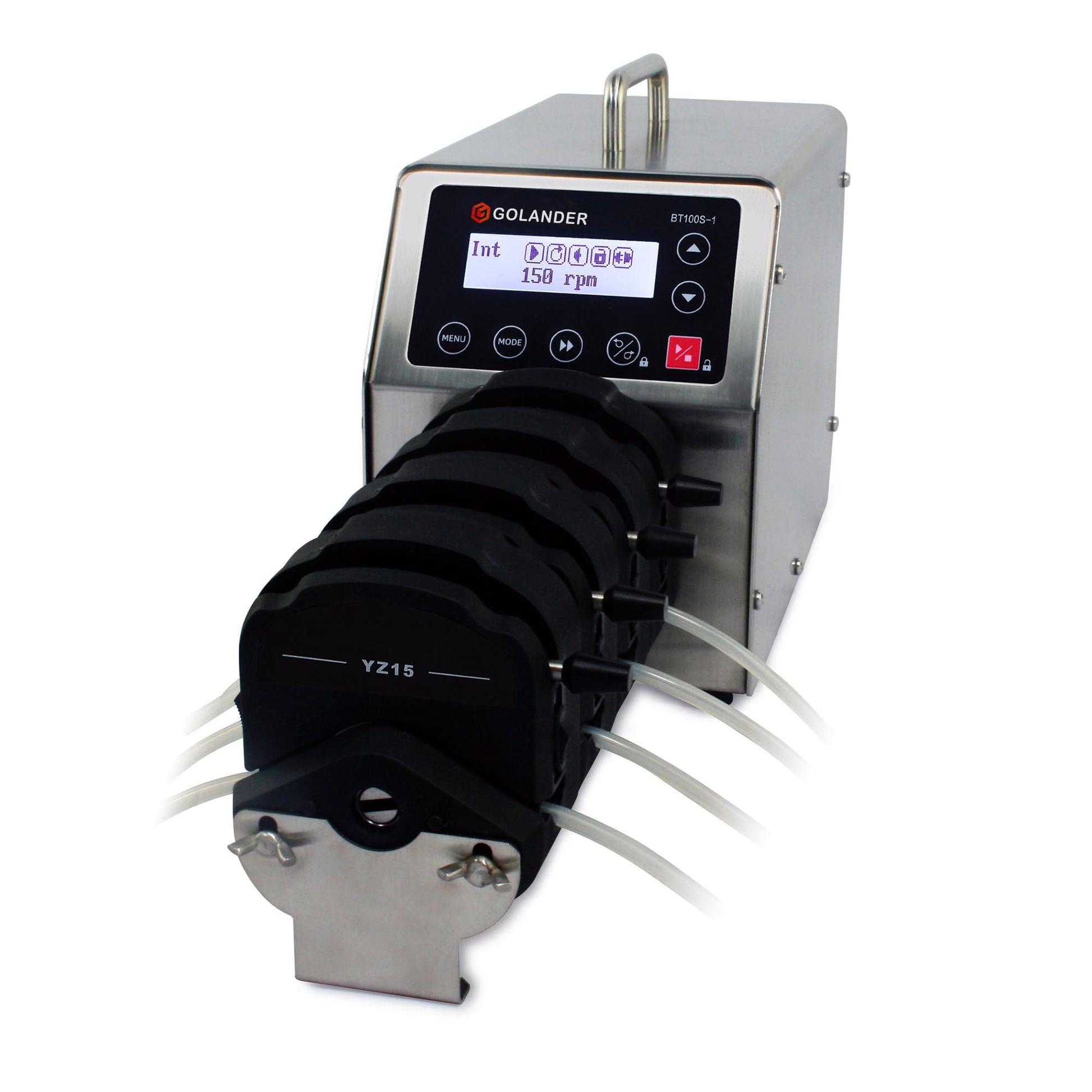

| 4 x YZ15 | 4 | 13# 14# 16# 19# 25# 17# | 0.006~420 | |
| 4 x YZ25 | 4 | 15# 24# | 0.16~420 | |

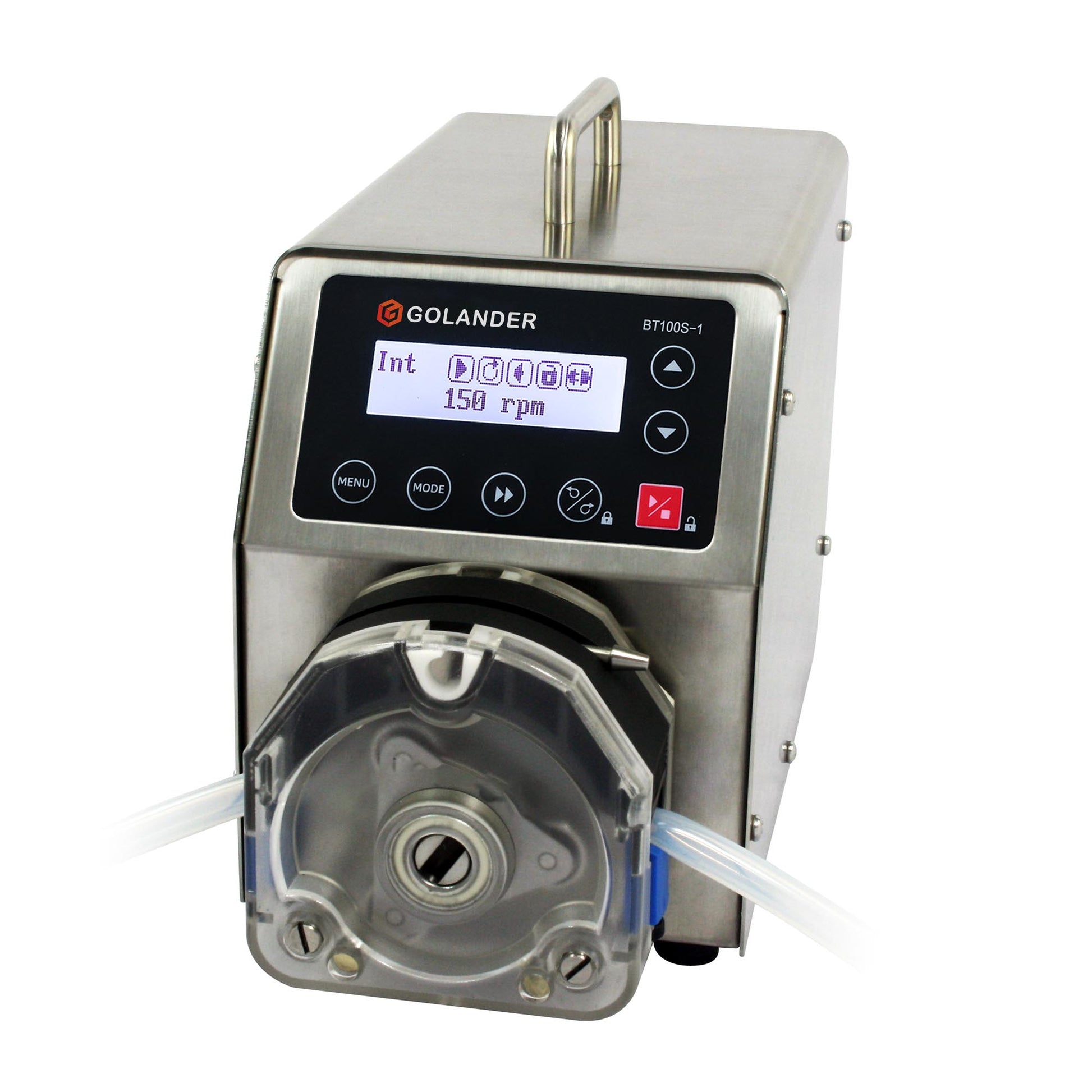

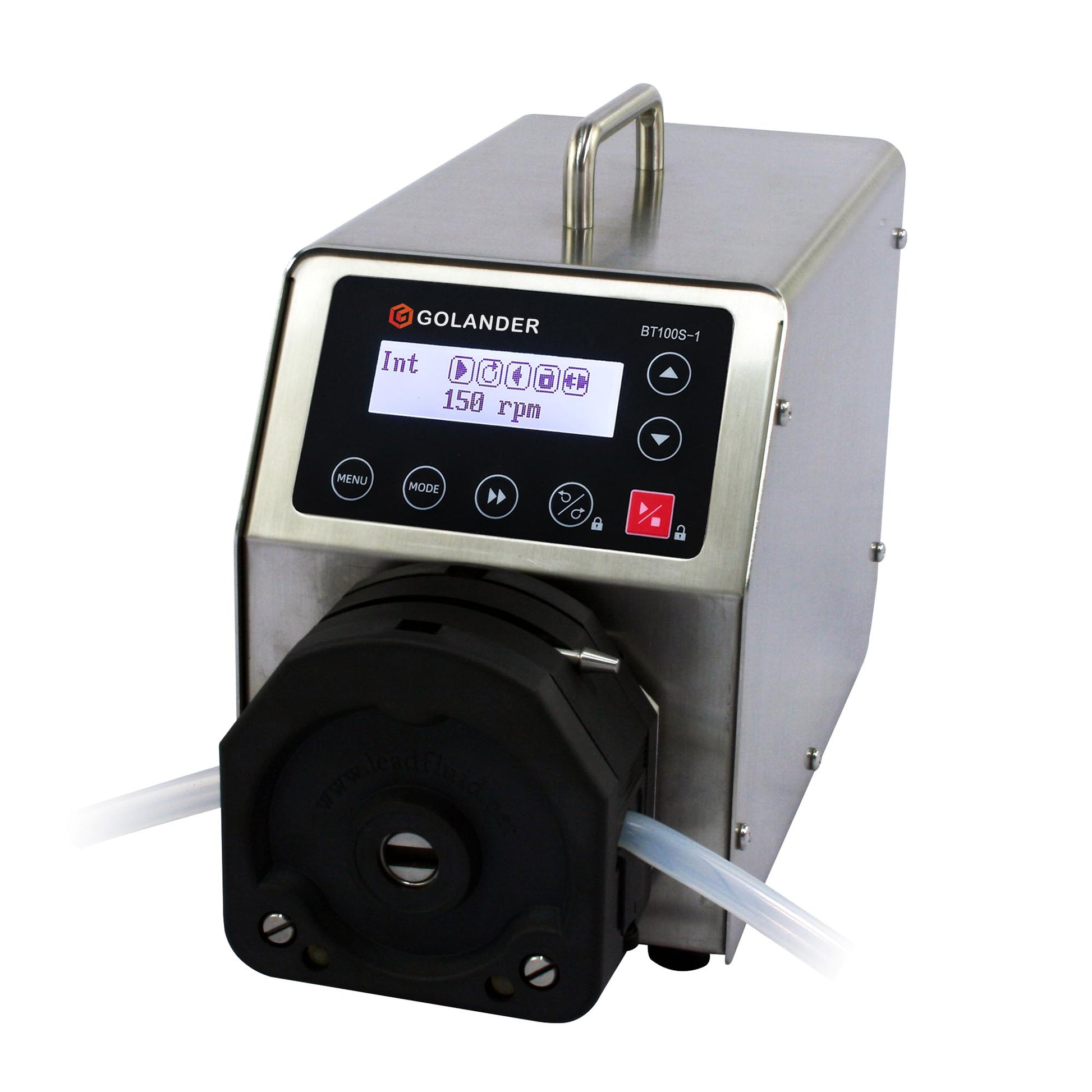

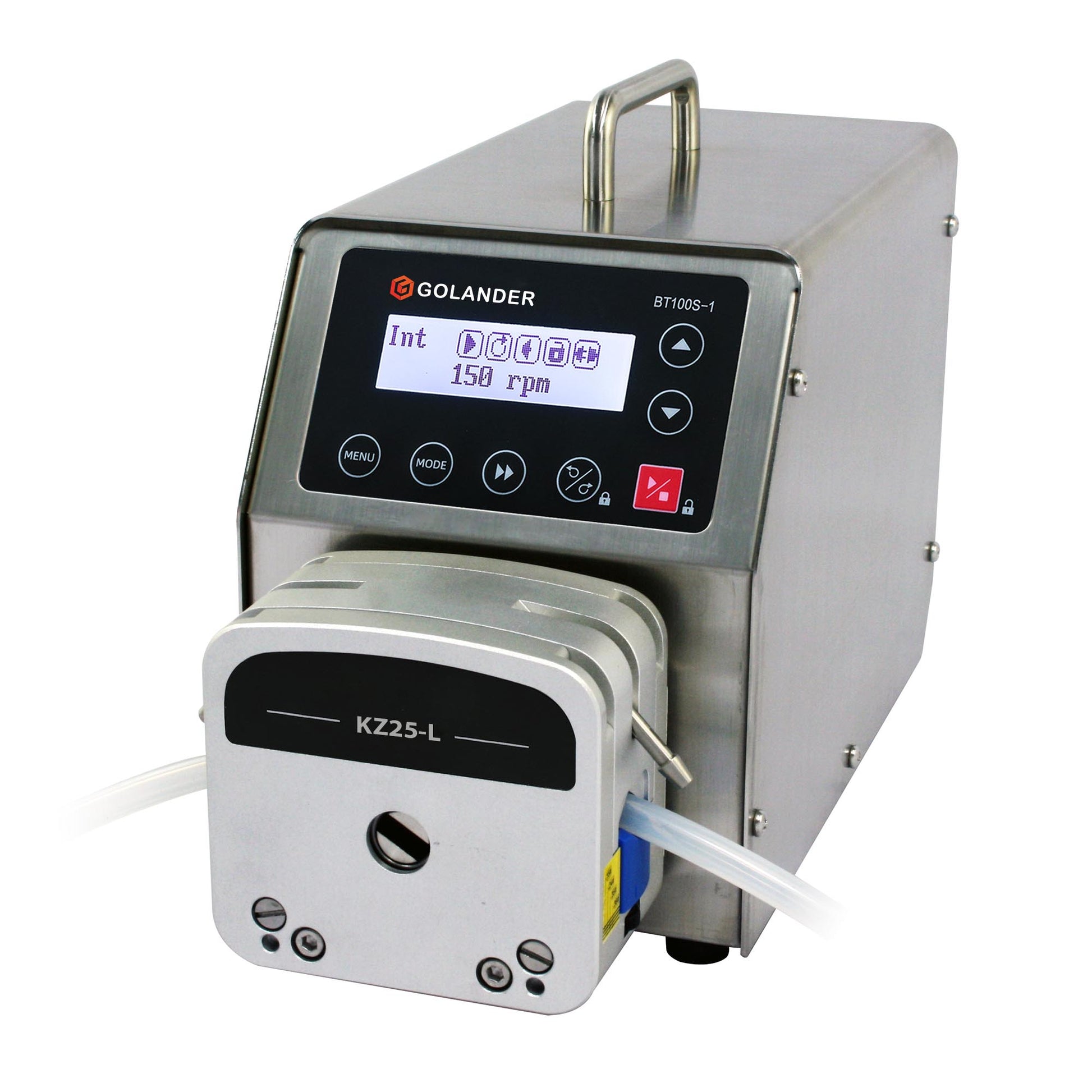

| KZ25 | 1 | 15# 24# 35# 36# | 1~1700 | |

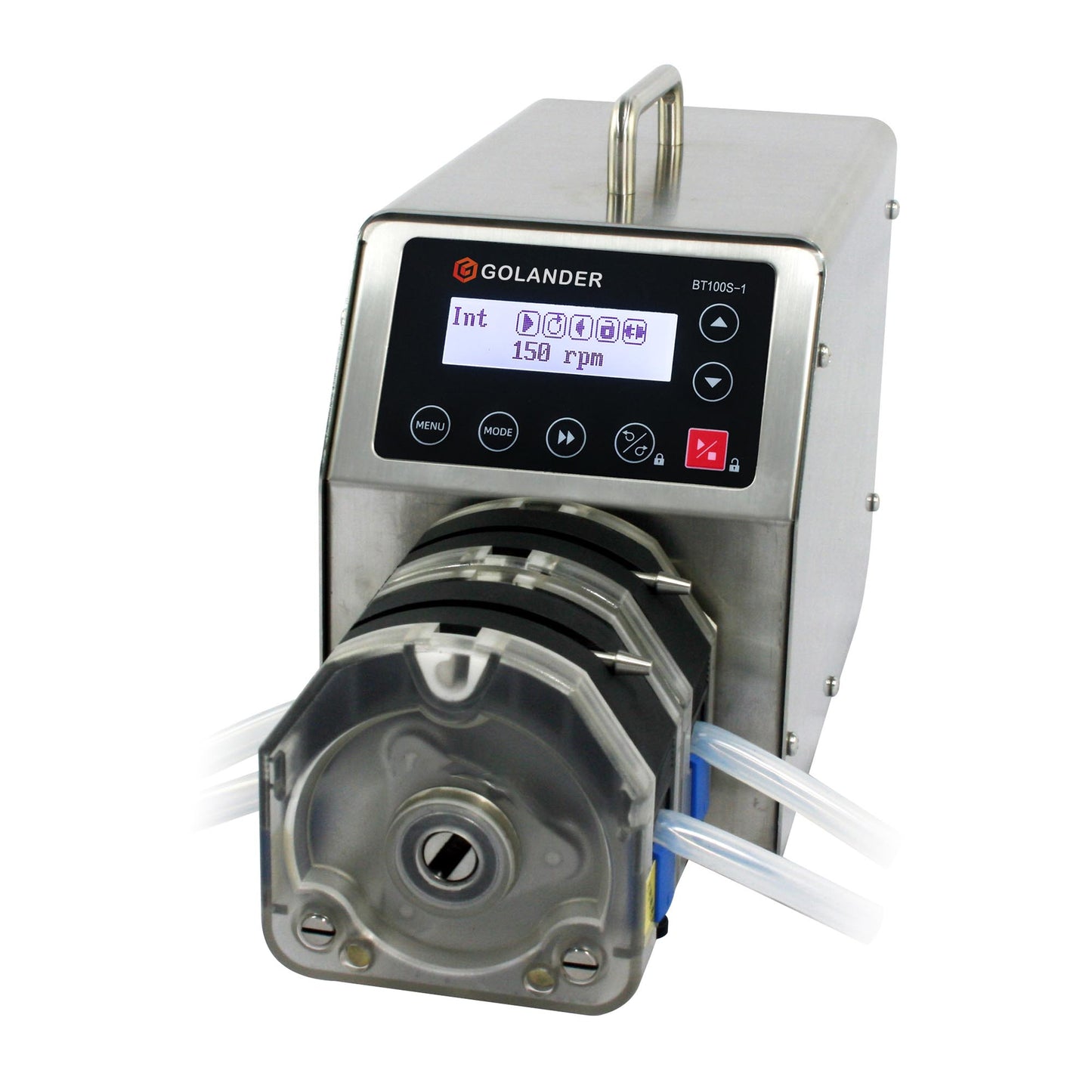

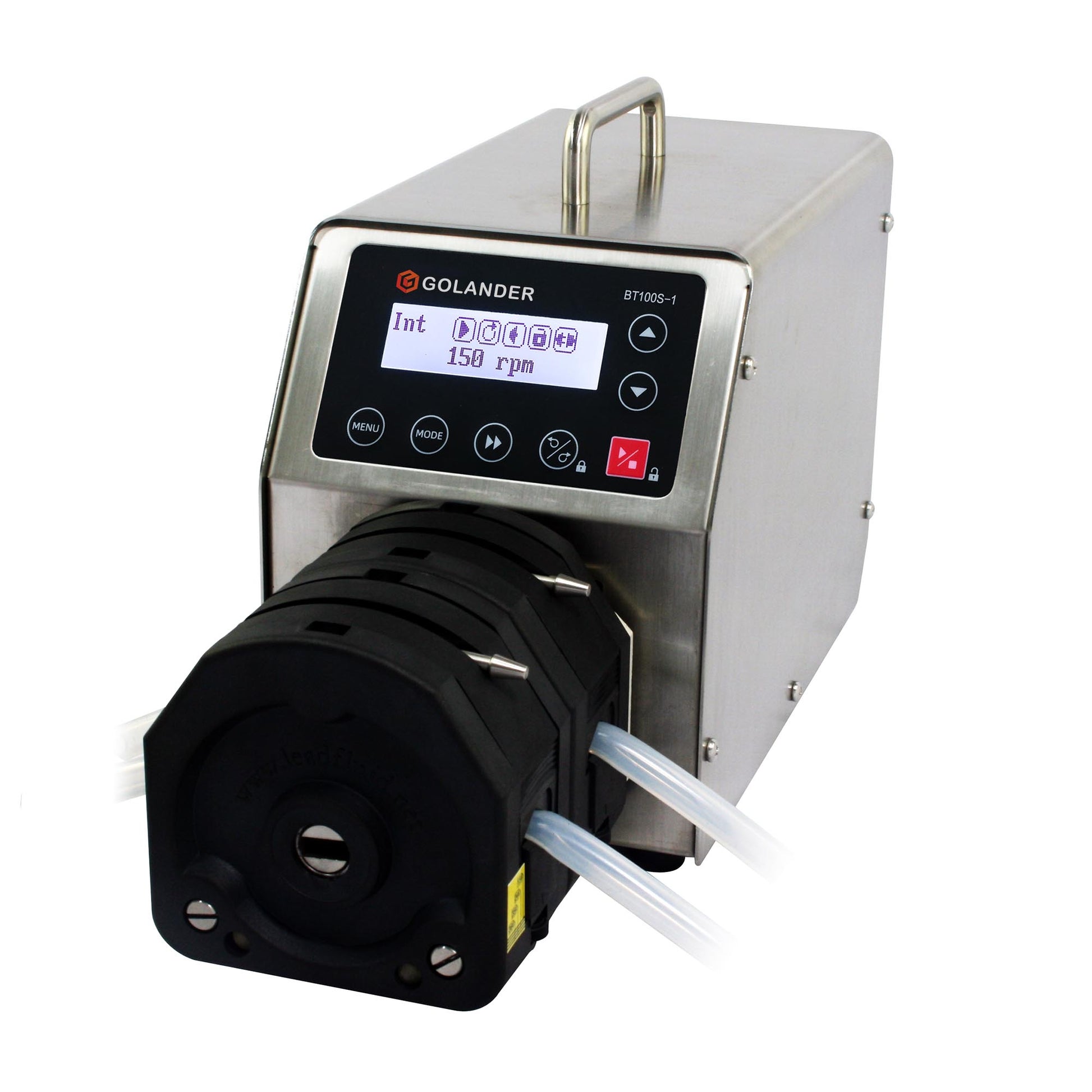

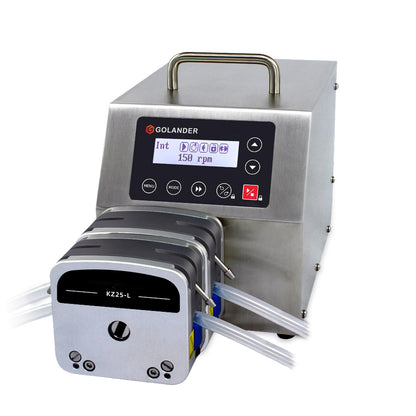

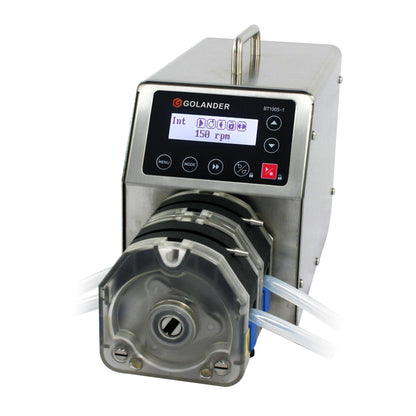

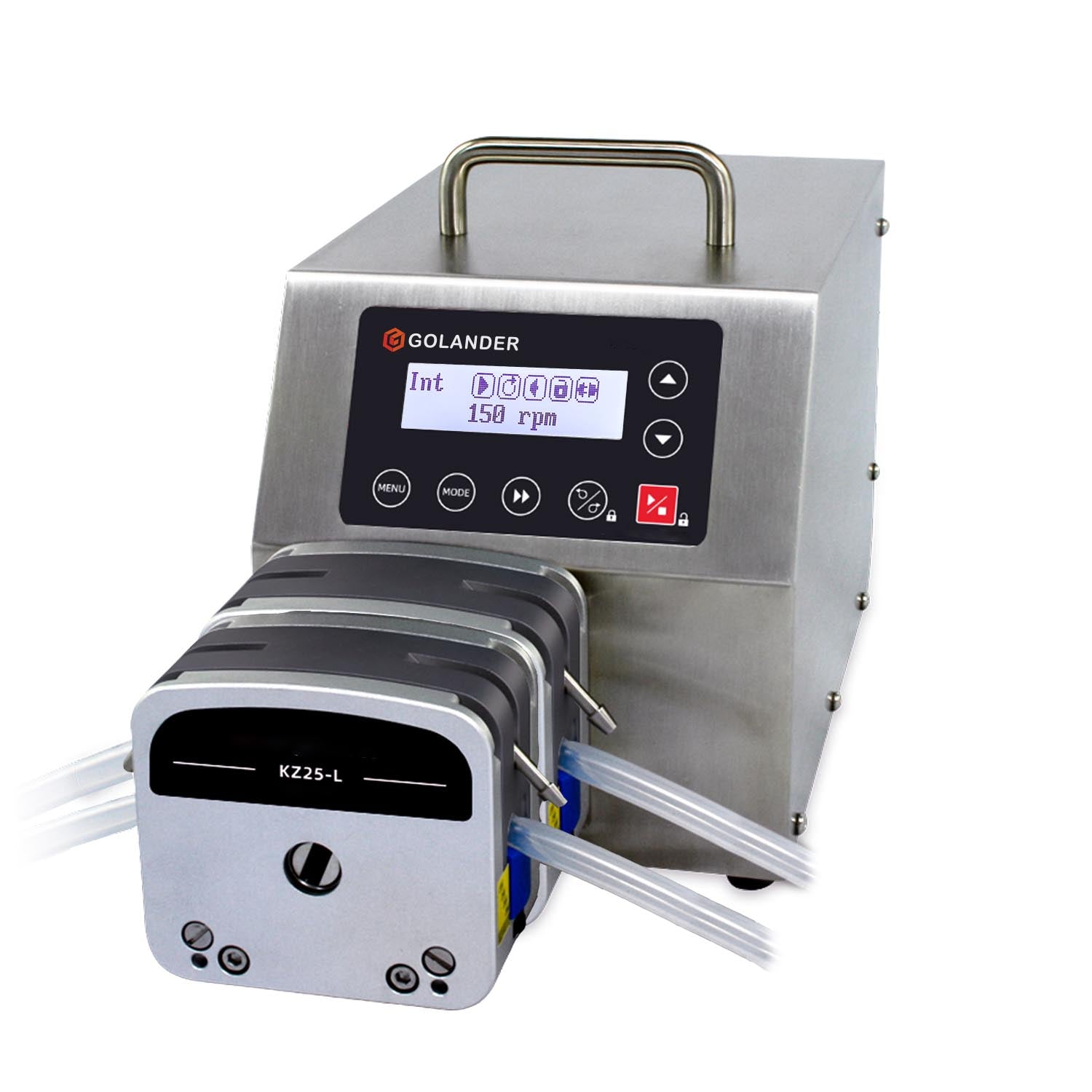

| 2 x KZ25 | 2 | 15# 24# 35# 36# | 1~1700 | |

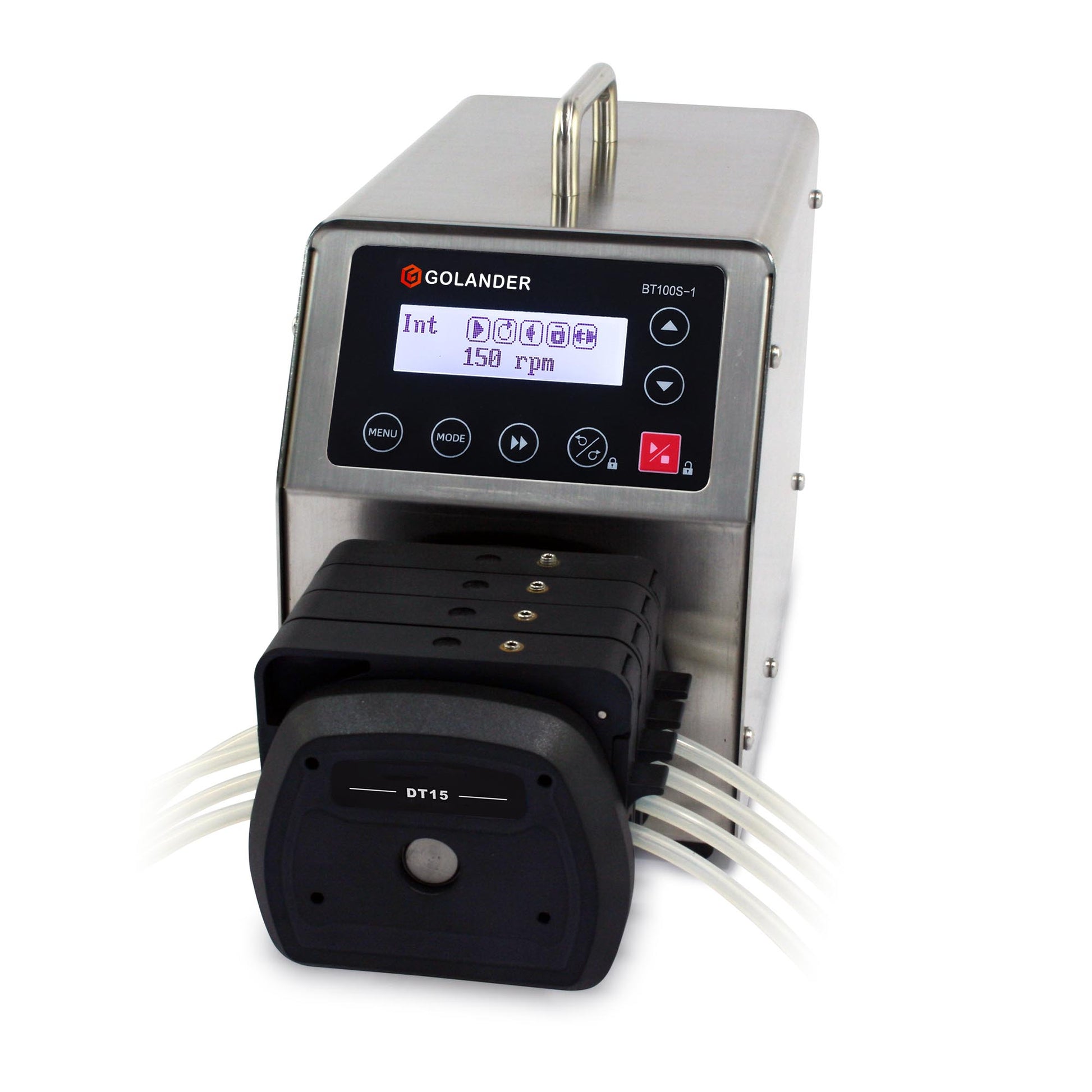

| DT15-44 | 4 | 19# 16# 25# 17# | 0.05~400 | |

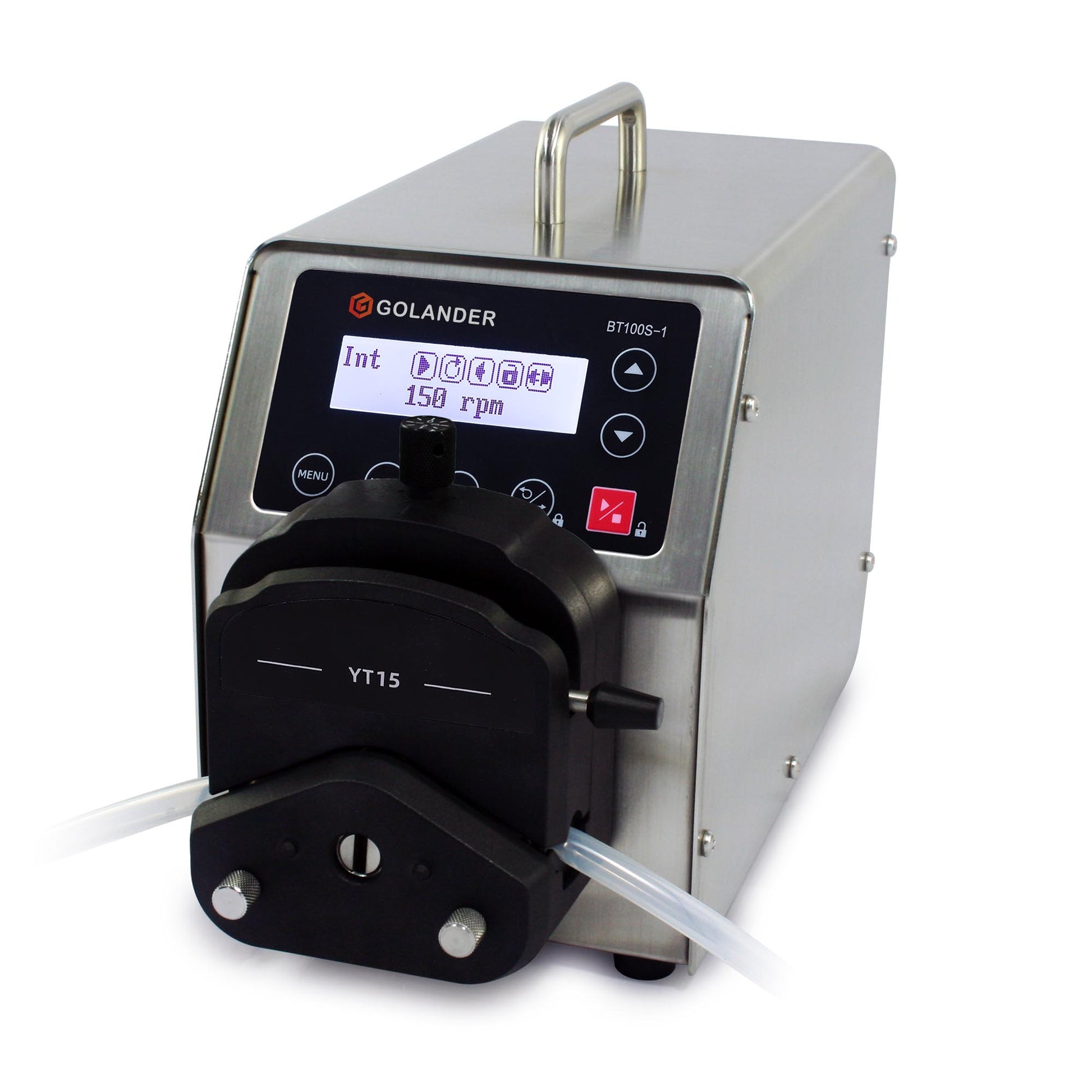

| YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 0.006~570 | |
| YT25 | 1 | 15# 24# 35# 36# | 0.006~720 | |

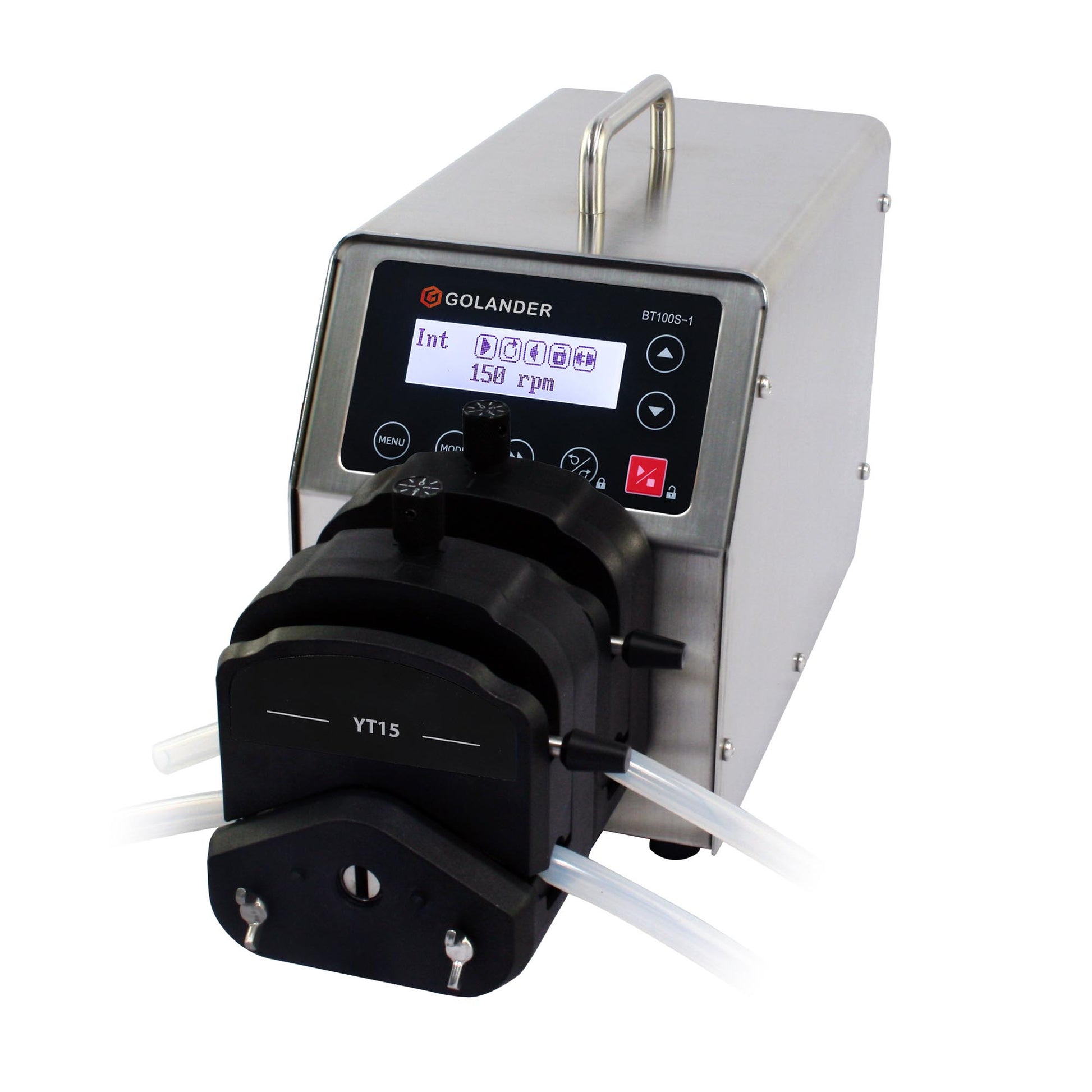

| 2 x YT15 | 2 | 13# 14# 16# 19# 25# 17# 18# | 0.006~570 | |
| 2 x YT25 | 2 | 15# 24# 35# 36# | 0.006~720 | |
| 4 x YT15 | 4 | 13# 14# 16# 19# 25# 17# 18# | 0.006~570 | |

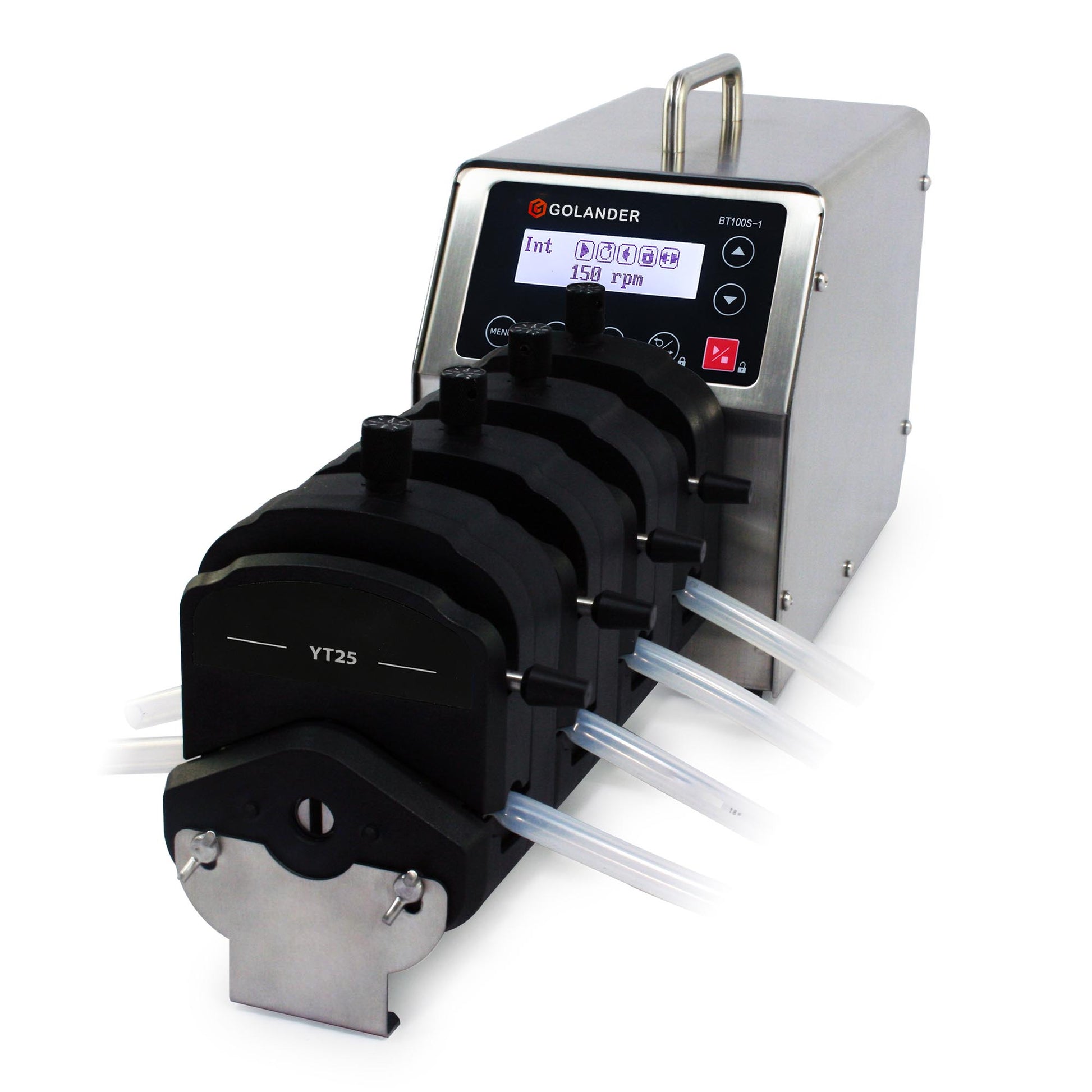

| 4 x YT25 | 4 | 15# 24# 35# 36# | 0.006~720 | |
| GN10 | 1 | 2mm ID, 4mm ID, 1mm wall thickness PTFE Tubing | 0.004~31 |
