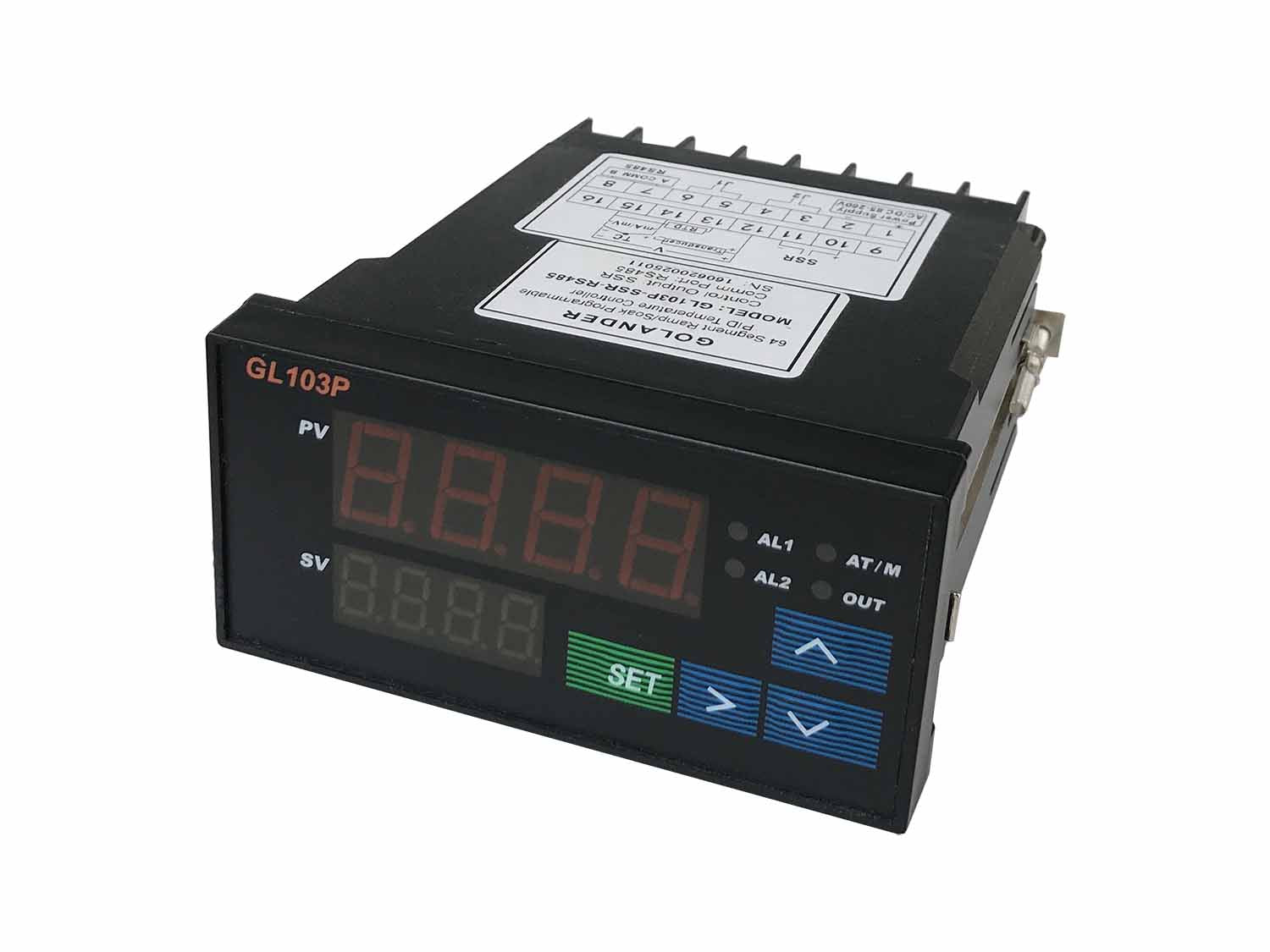

This temperature controller is a programmable 64-step ramp/soak controller. It can also be used as a regular PID temperature controller, on/off temperature controller, simply as a thermometer/pyrometer with bright LED display and alarm output. It offers great value for its price, as it is accurate, smart, and reliable.
The main output is for SSR only.
Features
- 64 steps can be programmed.
- Optional re-transmission output function or communication function. Remote control function can be performed from computer or PLC via RS485 interface.
- Preset 9 group PID parameters in order to adapt to different work conditions (High Temperature/Low Temperature/Constant Temperature/Heating/Cooling)
- Pause, skip, cycle, branch and power down protection
- Power-on and power down memory functions.
- Delay startup function.
- Alarm hold function.
- Manual mode.
- Classical PID and intelligent control.
- Optional RS485 communication function.
- Optional re-transmission function.
Main Specifications
| Input type | TC: K, E, S, R, J, T, B, WRe3-WRe25. RTD: Pt100, Cu50 |
|---|---|
| Input range | K (-200~+1300ºC), S (-50~+1600ºC), WRe3-WRe25 (0~2300ºC ), R (-50~+1600ºC), T (-200~400ºC), E (-200~900ºC), J (-200~1200ºC), B (350~1800ºC), Pt100 (-99.9~600.0ºC) or (-200~+600ºC), Cu50 (-50~150ºC) |
| Display | One lines, Four digits. °F or °C. |
| Display Resolution | 1°C, 1°F, or 0.1°C, 0. 1°F, with Pt100 |
| Accuracy | ±0.2% or ±1 unit of full input range |
| Control mode | PID, On-Off |
| Output mode | Relay contact: 3A at 240 VAC. SSR: 8VDC, 40 mA. |
| Alarm | Process high/low alarm |
| Power consumption | <2 Watt |
| Power supply voltage rating |
85~260VAC/50~60Hz or 85-360 VDC |
| Dimension | 48 x 96 x 112 mm |
