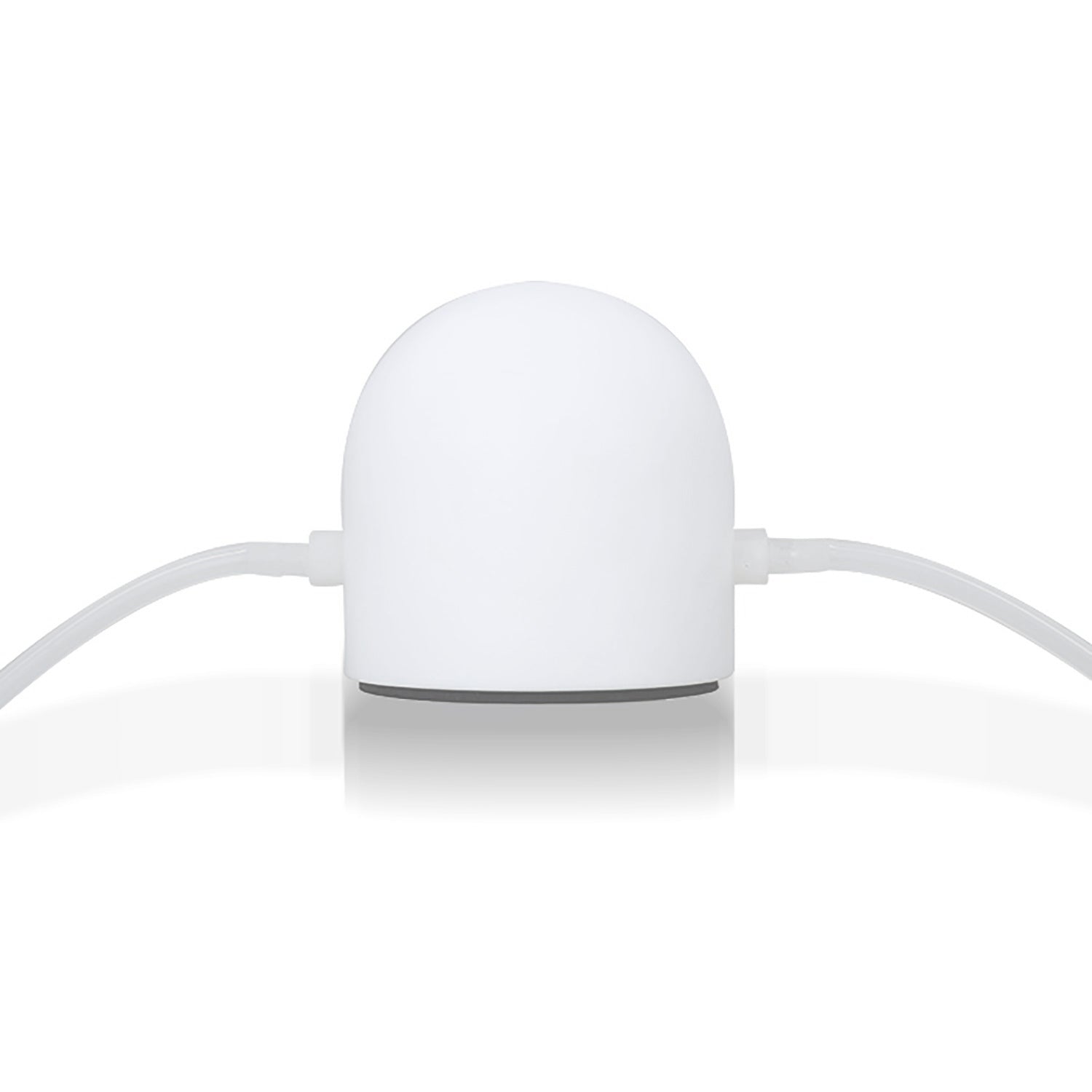

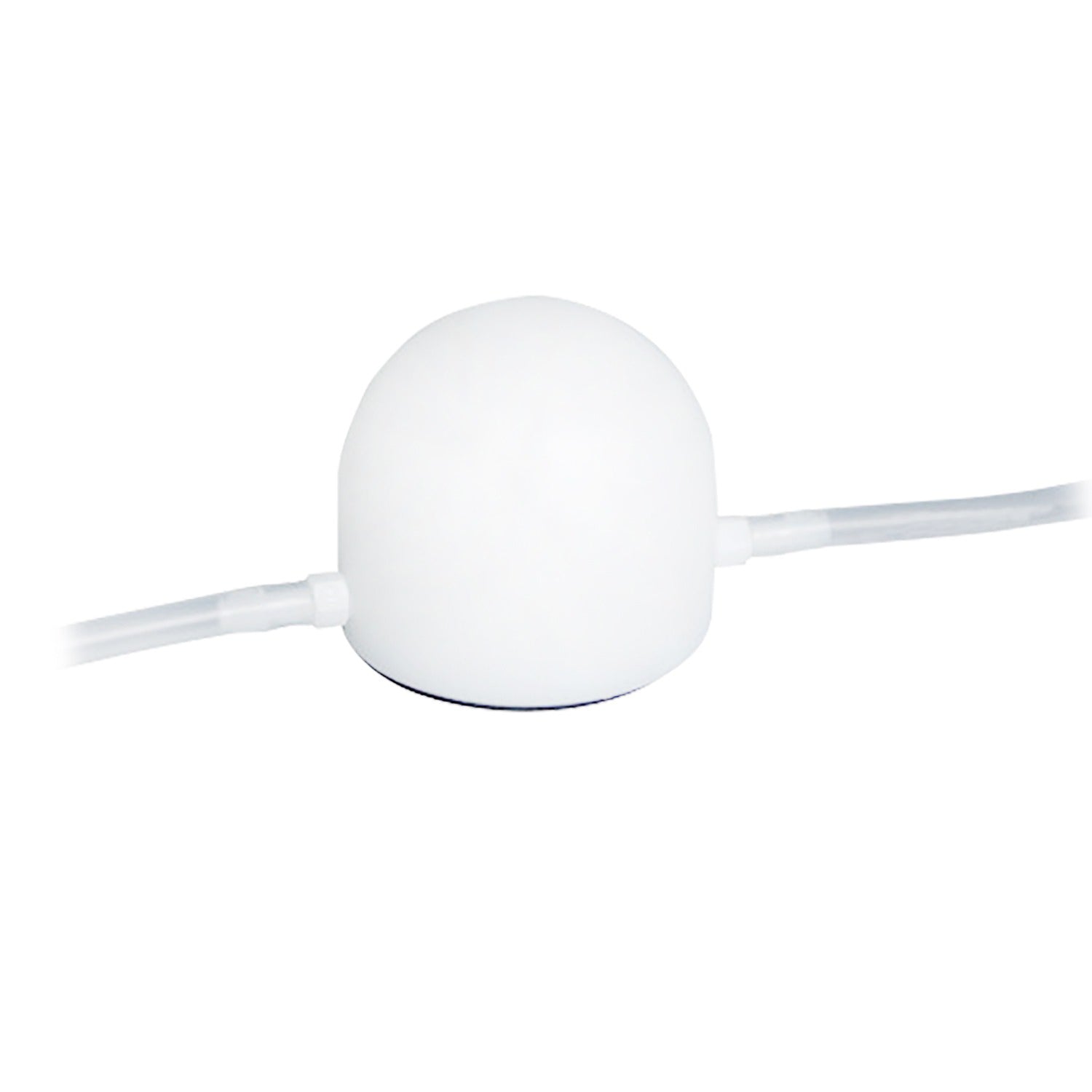

The ZN90 pulse damper is specifically designed to address the pulsation characteristics of peristaltic pumps. It is a pressurized container divided into two chambers, with the upper chamber filled with air. Thanks to the compressibility of the air, the damper can instantly absorb pressure pulses, resulting in a more stable flow and pressure throughout the system. This helps to significantly reduce pulsation in the tubing line.
Specifications
| ZN90-PE | ZN90-PTFE | |
| Tube material | silicone, pharmed, PVC, Viton, A-60-G/F | |
| Tube ID | 1.6-9.6mm | |
| Connectors | External threaded pagoda fitting | |
| Connector material | PVDF | |
| Volume | 180mL | |
| Max pressure | 0.3Mpa | |
| Dimensions | 90x90x90mm | |
| Shell material | PE | PTFE |
| Sealing material | EPDM | FFKM |
| Temperature | 0-40°C | 0-80°C |
| Temperature change | <5°C/min | <5°C/min |
| Weight | 220g | 510g |
